Rako Wireless addressable DALI Control Module - RSR-DALI


trade price available
WHAT IS IT?
The RSR-dali is a wireless receiver module with outputs to control 15 channels of addressable dali fittings in a single Rako Room.
Individual dali fittings can be grouped to Rako channels and the unit includes an address recovery function allowing should one dali fitting need replacing.
Controlled from any Rako Rakom RF device, for example the RCP/RCM push button RF wallplates.
In Control
  • The RSR-dali allows a wireless Rako system to have addressable control of dali light fittings. The module is complete with an 18V DC power supply that powers the dali network.
  • Programming is achieved with Rasoft Pro and allows Auto addressing of dali devices. Swap, Move and Group functions allow the user to achieve a logical arrangement of devices for programming.
  • The RSR-dali controls up to 64 dali devices grouped to 15 channels of control in a single Rako Room.
Note: The RSR-dali is not supported by Rasoft Classic Software.
Technical Specification
Dimensions: 190x105x66mm
Input supply: 18v DC
Weight: 340g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non-condensing
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
LVD: Any DMX512 compatible interface

Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile) Firmware upgrades via RASOFT programming Software
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£387.60 inc. VAT (1% Cashback available on all purchases via Debit Card)
£323.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.

You may also like

image Rako 4 Channel 0-10v, 1,10v, DSI and DALI Dimmer Rack - RAK-4F (Discontinued) (Special Order / Discontinued)
£612.00

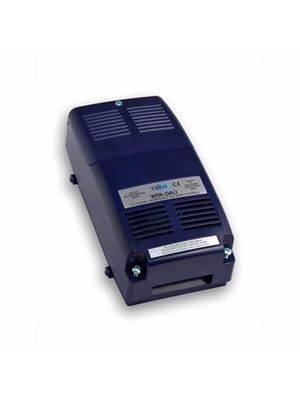

image Rako Wired Addresable DALI Control Module - WSR-DALI
£387.60
image Rako Controls 600W 0-10V, DSI & DALI Broadcast Digital Dimming unit for RAK8-MB - WDA-600
£112.80

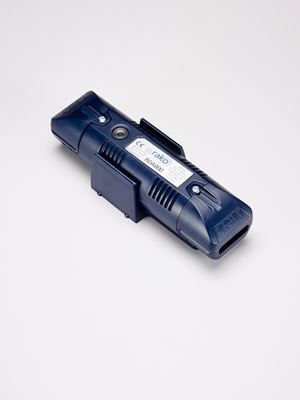

image Rako Wireless 800W in-line RF dimmer for 1-10v, DALI and DSI controllable loads - RDA800
