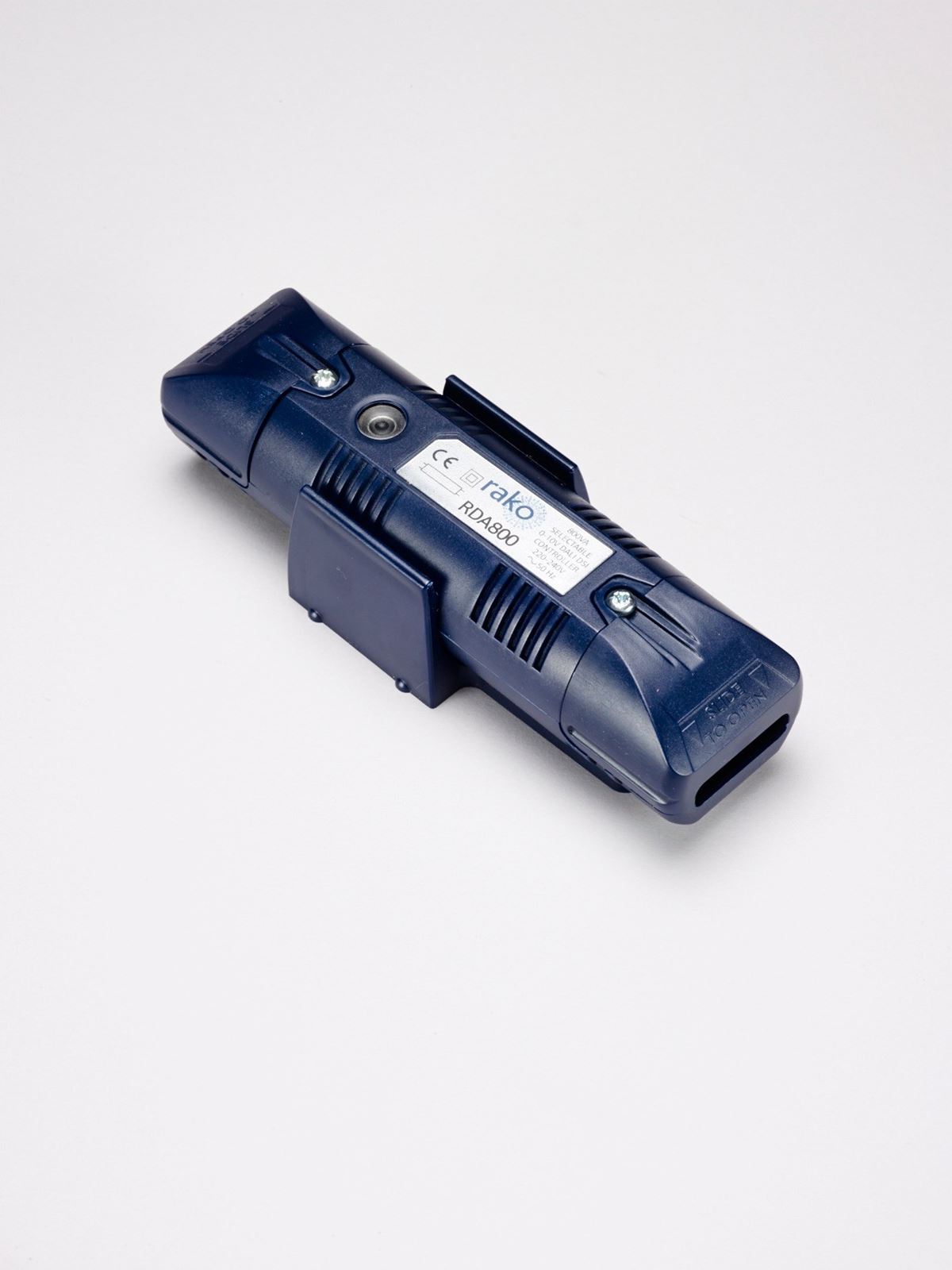

Rako Wireless 800W in-line RF dimmer for 1-10v, DALI and DSI controllable loads - RDA800

The RDA800 in-line RF dimmer for 1-10v, dali and DSI controllable loads
Connected in-line before the first lighting fitting the RMS800 enables switching of up to 800VA of 0-10v, dali and DSI controllable loads such as LED drivers and dimmable fluorescent ballasts.
Controlled from any Rako Rakom RF device, for example the RCP/RCM push button RF wall-plates.

• Designed to fit in a ceiling void or cupboard, the RDA800 module can control up to 800VA of 0-10v, dali and DSI controllable lighting loads. Control signal output mode (0-10v, dali or DSI) is user selectable via a connecting link. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure.
• 16 Scene memory capacity, can be fully integrated into Rako wired systems.
• Easy set-up and manual On/Off control using the set-up button. F
• Full rising clamp terminals and mounting bracket for easy installation.
• Programmed using either an RCM/RCP RF wall-plate or RASOFT PC Software suite, the RDA800 stores the House, Room and Channel address plus 16 preset scene levels in a non-volatile memory.
• The RDA800 can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand-helds and Bridge modules and forms the foundation of any Rako wireless scene-set system.

• 3 way screw terminals for mains SUPPLY  power (LNE)
• 3 way screw terminals for mains LOAD power (LNE)
• 2 way screw terminals for ELV output

• Over current protection
• Voltage surge protection

• 0-10v Controllable loads
• dali Controllable loads (Operates via dali Broadcast communication)
• DSI Controllable loads
• Switched

• 240V Switching 800VA
• Control output - max 25 devices
