WHAT IS IT?

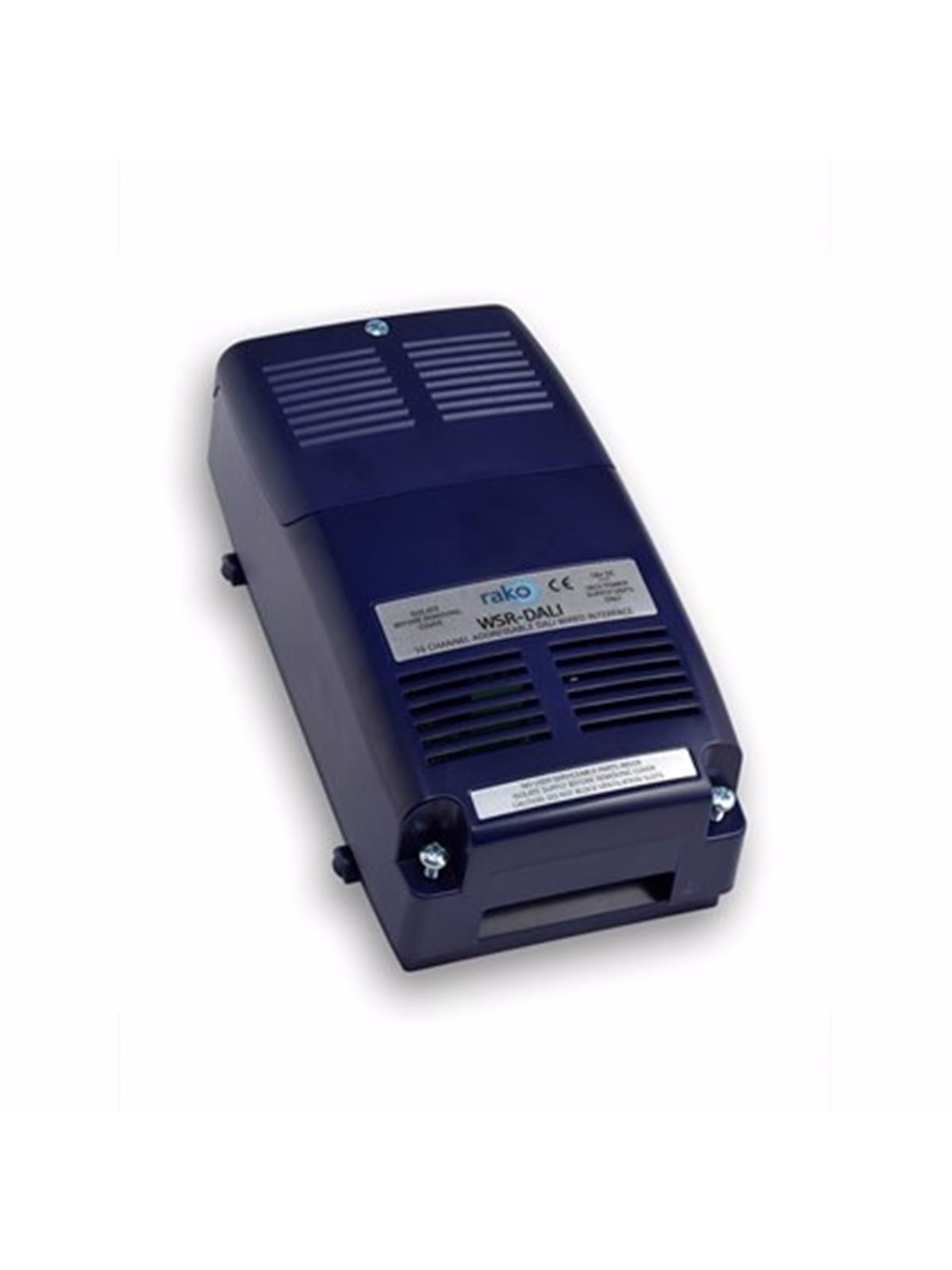

The WSRDALI is a wired control module with outputs to control 15 channels of addressable
dali fittings in a single Rako Room.
Individual
dali fittings can be grouped to Rako channels and the unit includes an address recovery function allowing should one
dali fitting need replacing.
- The WSRDALI allows a wireless Rako system to have addressable control of dali light fittings.
- The module is complete with an 18V DC power supply that powers the dali network.
- Programming is achieved with Rasoft Pro and allows Auto addressing of dali devices.
- Swap, Move and Group functions allow the user to achieve a logical arrangement of devices for programming.
- The WSRDALI controls up to 64 dali devices grouped to 15 channels of control in a single Rako Room.
NOTE: The WSRDALI is not supported by Rasoft Classic Software
Technical Specification
Dimensions: 190x105x66mm
Input supply: 18V DC
dali connections: 4 way screw terminal for loop in loop out
Weight: 320g
Housing: UL V0 ABS
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing
Rakom cable type: UTP CAT5e or CAT6
Rakom terminals: RJ11 Socket or Krone Connector
Standards:
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007
LVD: EN 60950-1 :2006
Communication: Rakom Wired Network
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£323.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
