WHAT IS IT?

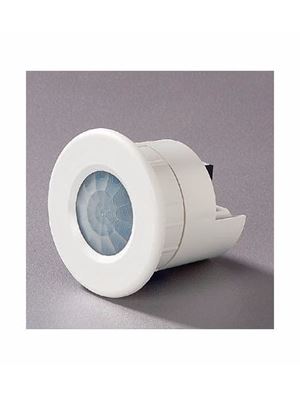

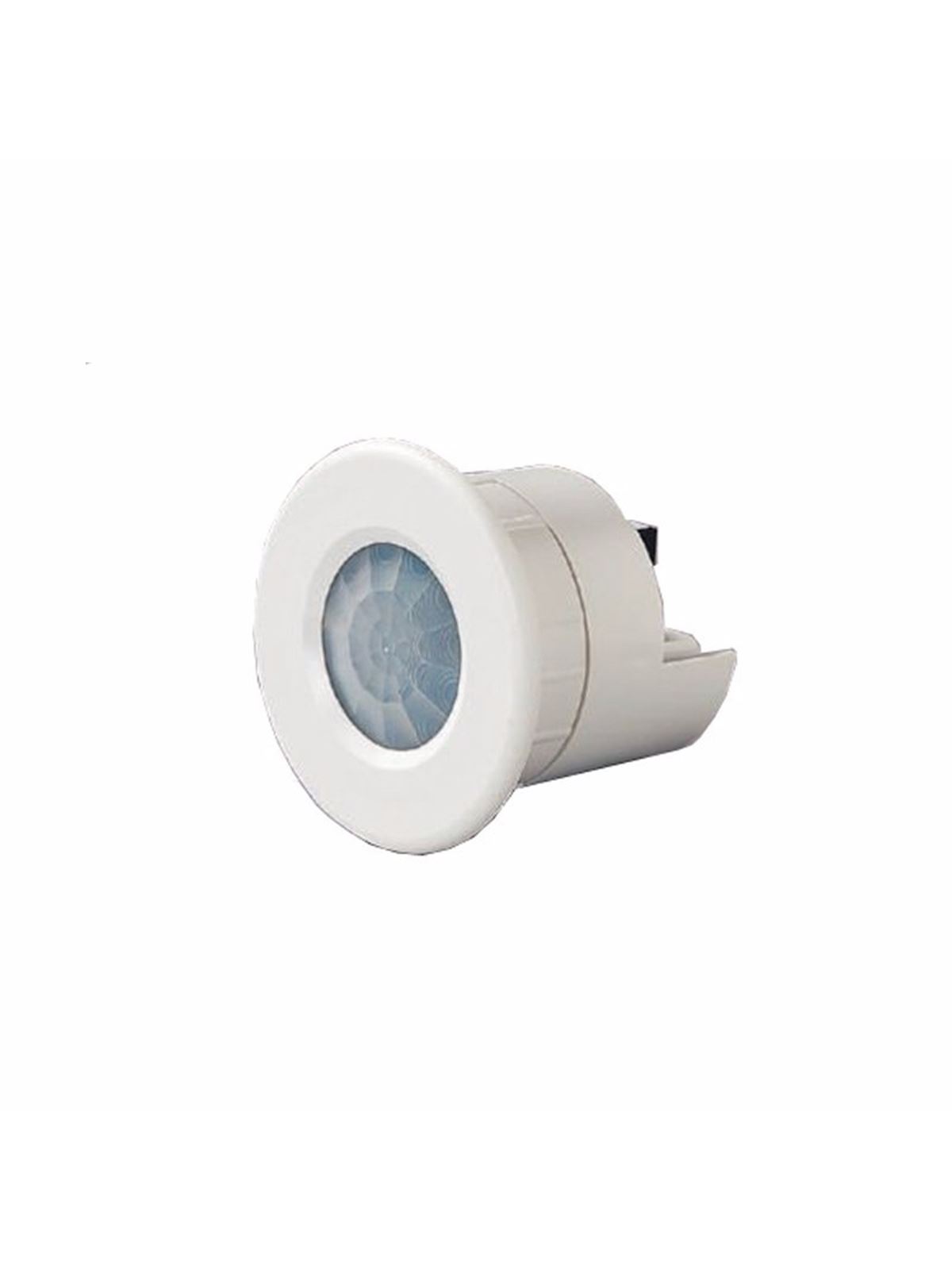

A ceiling mount PIR motion detector with a 360o sensor pattern.
The unit is ideally suited to office and residential applications where automatic scene selection is required.
Movement Control
The RAPIR motion detector module allows scenes to be selected automatically via movement.
In factory default setting, the unit will select scene 1 and off, with a timeout of 5 minutes.
When configured with the RASOFT programming
Software, it is possible to select which scene is activated and modify the timeout period. The RAPIR also listens to RCM/RCP wall plates, to enable and disable the PIR motion function when not required.
Mounting is via a 64mm diameter ceiling cutout, where a plastic collar is fitted. The housing is then pushed into place without the need for fixing screws. This method of installation idealy suits plasterboard or solid ceilings as it avoids the need for rear access to the unit and protects the surrounding finish.
Technical Specification
Dimensions: 68.5x76mm (64mm ceiling cut-out)
Input Supply: 230V AC +/-10% 50Hz
Weight: 125g
Housing: Flame retardant ABS, fixing clip polypropylene
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non condensing
Connections: 2 way screw terminal for power supply
Power Supply: 230v Mains Powered
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£165.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
