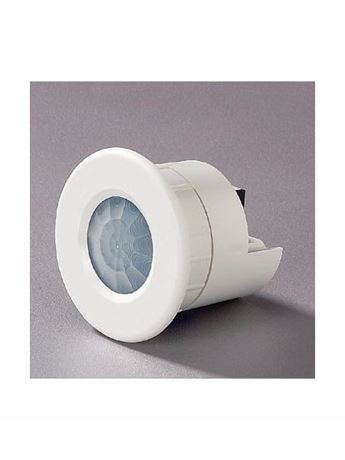

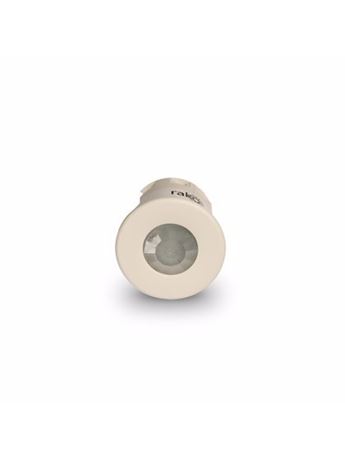

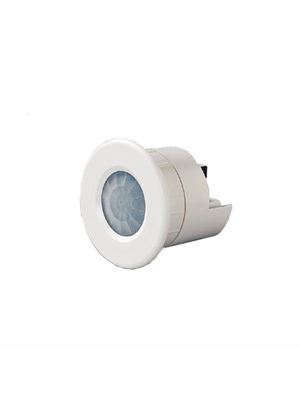

Rako Wired 360O Ceiling Mounted Wired PIR Motion Detector - WAPIR

A ceiling mount PIR motion detector with a 360o sensor pattern.
The unit is ideally suited to office and residential applications where automatic scene selection is required.

• The WAPIR motion detector module allows scenes to be selected automatically via movement.
• The unit can replicate any button press that is required. It will also dim lights slightly before going off entirely, to pre-warn the occupant.
• When configured with the RASOFT programming Software, it is possible to select which scene is activated and modify the timeout period.
• The WAPIR also listens to WCM/RCM wall plates, to enable and disable the PIR motion function when not required.
• Mounting is via a 64mm diameter ceiling cutout, where it is held in place with internal metal clips.
• The housing is then pushed into place without the need for fixing screws.
• This method of installation ideally suits plasterboard or solid ceilings as it avoids the need for rear access to the unit and protects the surrounding finish.
