Rako Wireless 250W wall box mounting dimmer for tungsten GLS and tungsten halogen GU10 - RMT-PILL


trade price available
WHAT IS IT?
A compact 250W RF dimmer designed to be located in a standard UK or European backbox.
The RMT-Pill can be used either with or without a neutral allowing it to be used with dedicated wiring or retrofit into a standard wiring situation.
Trailing Edge technology for quiet reliable dimming of any non-inductive load when used with a neutral or tungsten GLS and tungsten halogen GU10 style lamps when used without.
Controlled from any Rako Rakom device or simple contact closure input using a momentary push switch.
In Control
Designed to a fit in a standard UK or European back-box the RMTPill, whether used with or without a neutral, has full RF receiving capability and the same programmability as other Rako dimmers. The "Pill” dimmer is useful for installations where fitting a standard Rako dimmer is difficult e.g. retro-fitting to control wall-lights.

The RMT-PILL can be controlled from any Rako transmitter such as RCM wallpanels, RAH hand held, timeclocks and forms an integral part of a Rako scene-set system. The RMT-PILL dimmer can also be controlled from a simple momentary action switch giving ON/OFF control allowing cost effective extra panels. Control from simple panels still allows the dimmer to be used as part of an overall home control system with Master Off and macro command response.
Technical Specification
Dimensions: 50x50x19.5mm
Input supply: 230V AC +/-10% 50Hz
Weight: 46g
Housing: UL V0 Material
Climate range
Temperature: +2C to +40C
Humidity: +5% - 95% non-condensing

Connections:  4 way screw terminals for mains power. Molex 2 pin socket for auxiliary switch
Protection
  • Auto resetting over current protection
  • Auto thermal shutdown
  • Voltage surge protection
Load Types with Neutral
  • Mains Dimmable LEDs
  • Incandescent mains voltage lamps
  • Tungsten halogen, GU10 lamps
  • Trailing Edge dimmable LV transformers
  • Trailing Edge dimmable cold cathode.

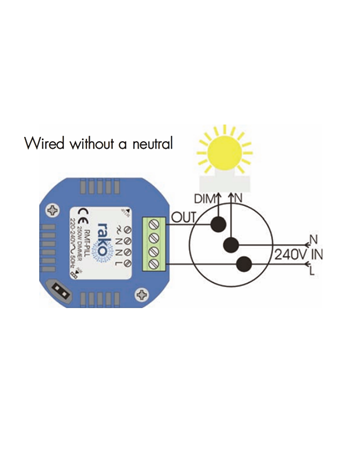

Load Types without Neutral
  • Incandescent mains
  • voltage lamps
  • Tungsten halogen
  • GU10 lamps Not suitable for low voltage or LED lamps.
Minimum Loads
With neutral - Min 1W
Without neutral - Min 60W

Maximum Load:  250W
Terminal Sizes
  • 1.5mm2 stranded
  • 2.5mm2 Solid
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001

Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile) Firmware upgrades via RASOFT programming Software
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
  • Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
  • Developer/Trade Pricing - Available upon request
  • Support our clients - We offer on-site support and commissioning.
  • Confidence in Quality - Our Rako Specialist  has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£134.40 inc. VAT (1% Cashback available on all purchases via Debit Card)
£112.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
