WHAT IS IT?
A hard wired 10 button push button control module that has several fixing options.
Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
Requires Standard UK Single Gang BackBox (35mm or deeper)
Ultimate Control

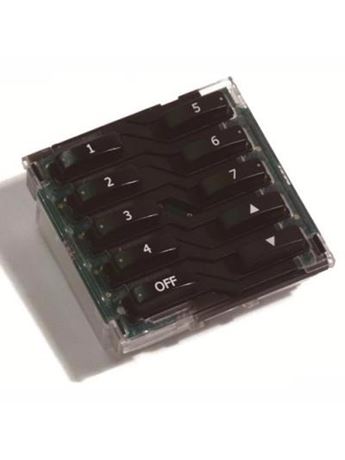

The WCM-100 push button control module comes pre-configured for selecting 7 scenes, off and master raise & lower. Each button is complete with a blue LED indicator and day-night etched buttons.

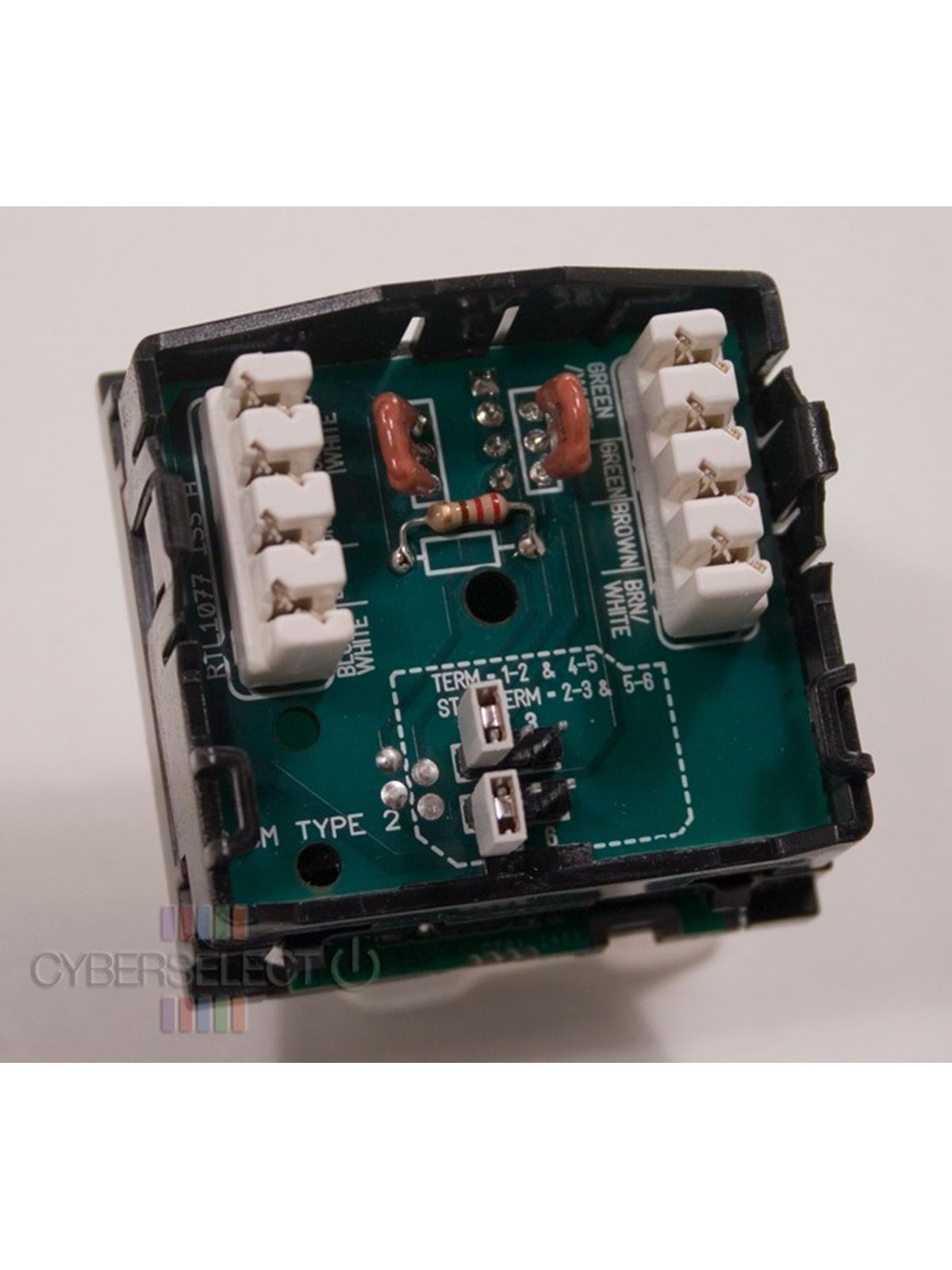

Easy connection to the Rakom wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished.

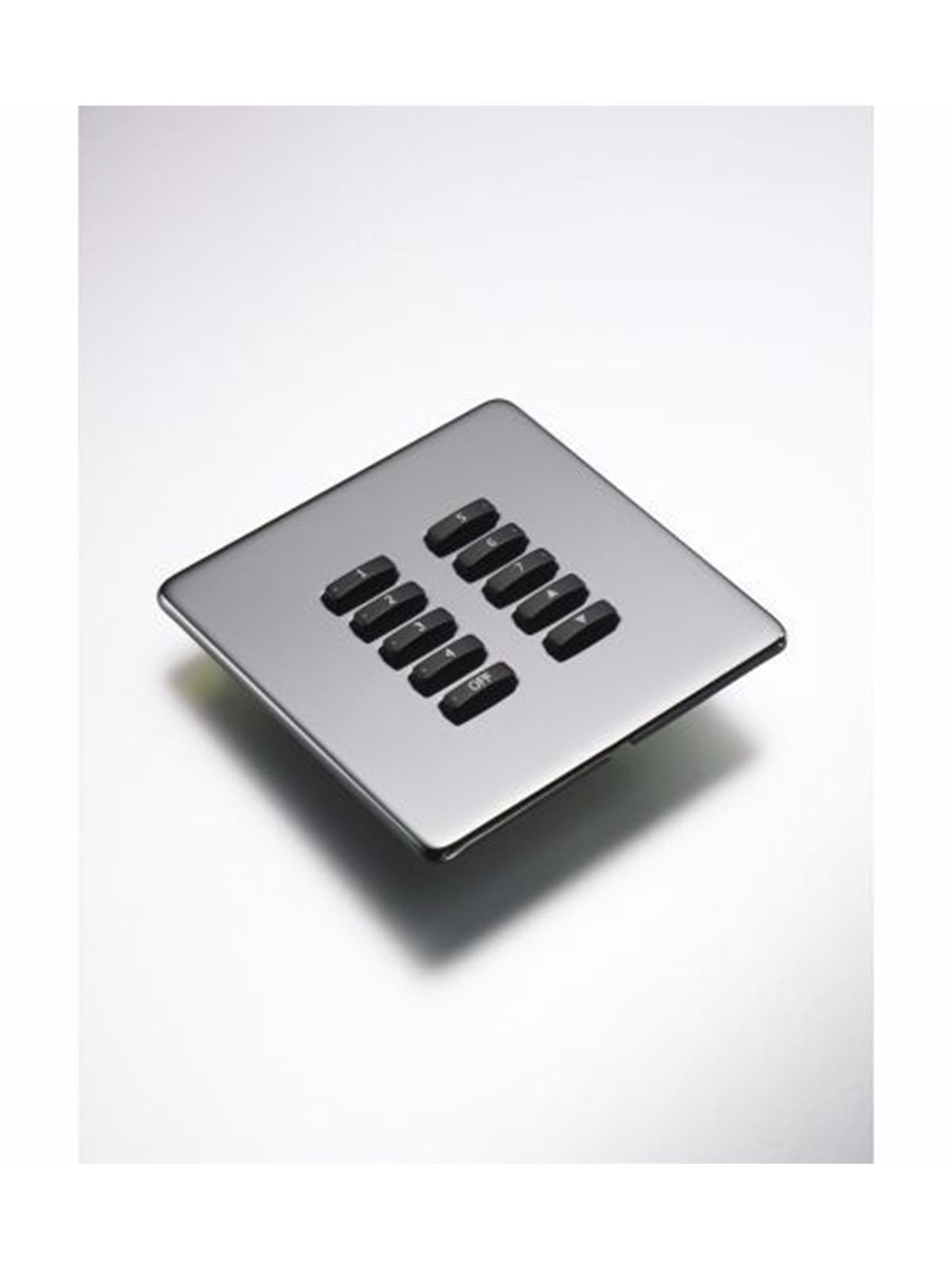

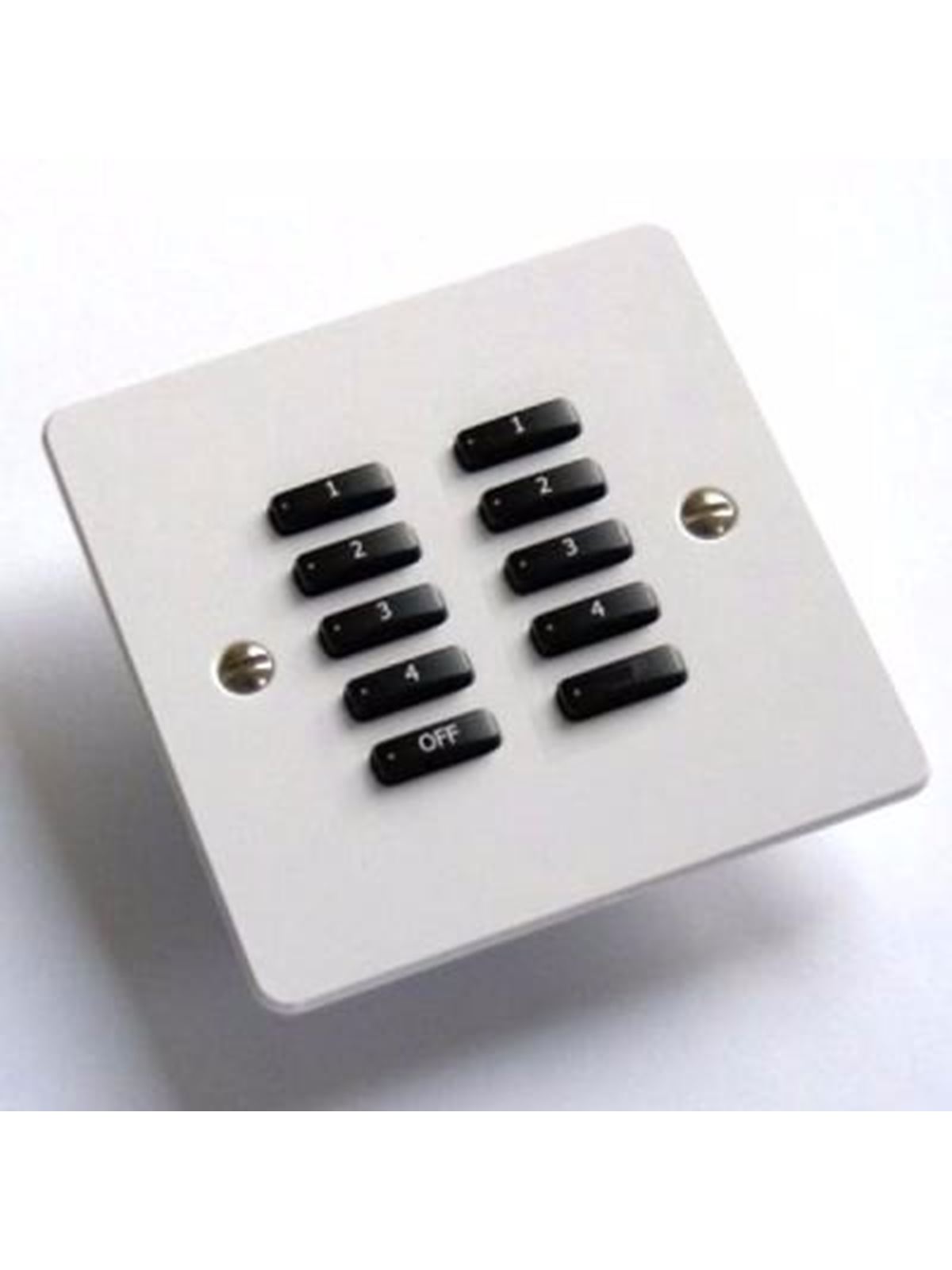

The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.
Using RASOFT programming
Software it is possible to configure each button individually to carry out a number of different tasks,
for example:
- Scene selection
- Scene toggle on/off
- Channel toggle on/off
- Master raise & lower
- Channel raise & lower
- Macro start/stop
- Local room or global off
LED indicators are individually programmable to follow the logic of the above functions.
Custom button laser engraving is available to match.
Technical Specification
Dimensions: 50x50x36mm
Input supply: 12-18vdc supply from Rakom CAT5 wired network
Weight: 50g
Fixing: Flush mounting into standard single gang back box, minimum 35mm depth.
Climate range
Temperature: +2C to +40C
Humidity: +5% - 90% non condensing
Cable Type: UTP CAT5e or CAT6
Terminal Type: 8 way Krone punch down (screw terminal option available)
Standards
Emissions: EN61000-6-3 : 2001
Immunity: EN61000-6-1 : 2001
Communication: Rakom wired network
Memory: Flash memory (non volatile) Firmware upgrades via RASOFT programming
Software
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£180.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
