WHAT IS IT?
A battery powered interface unit for up to 4 x 2 way latching volt-free switch inputs.
Programmed by
NFC (Near Field Communication) with macro capability.
NOTE: This product can only be programmed with a laptop and the Rako RAMPI programming interface.

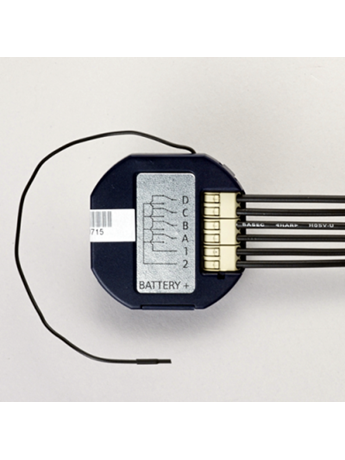

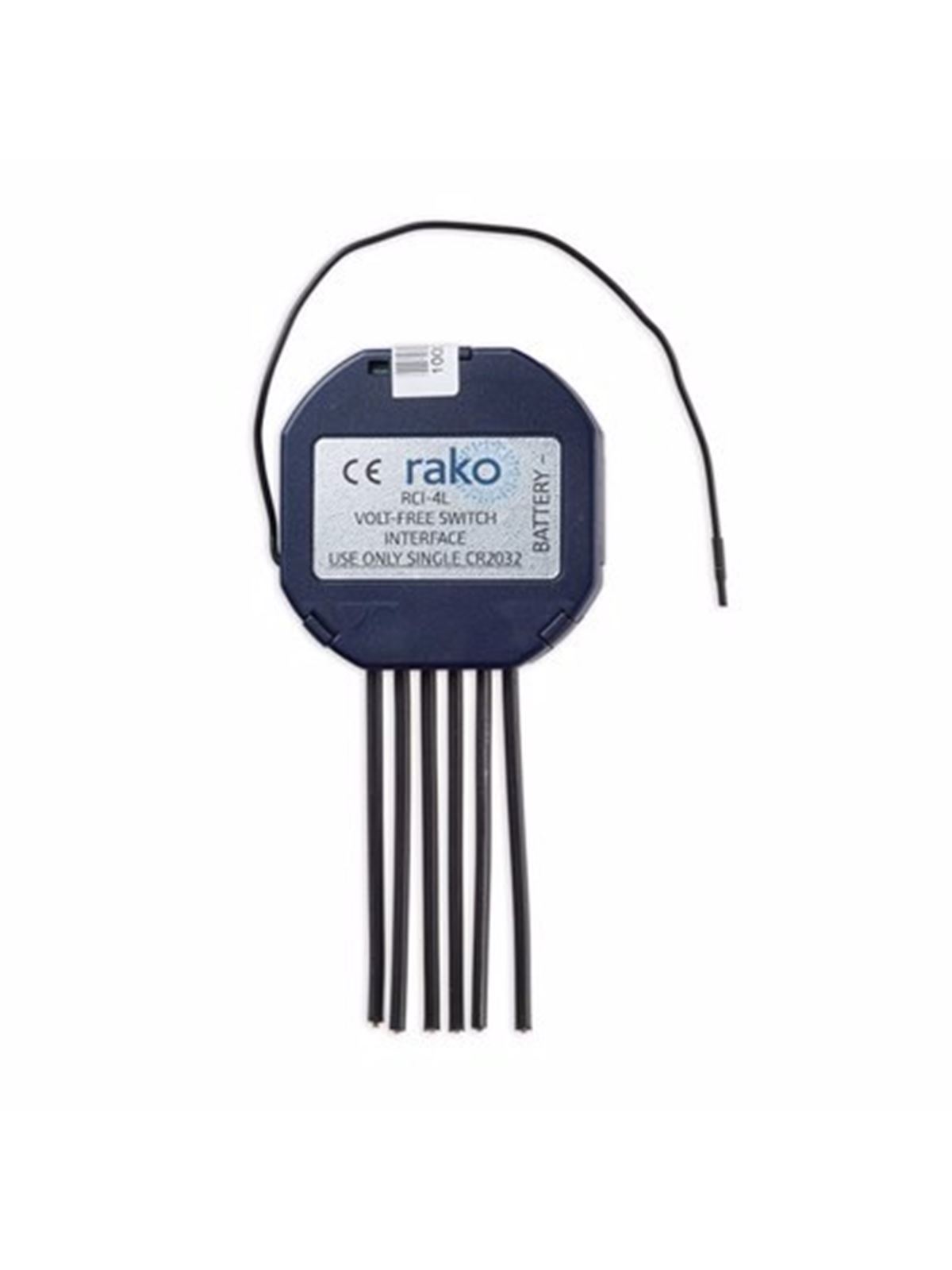

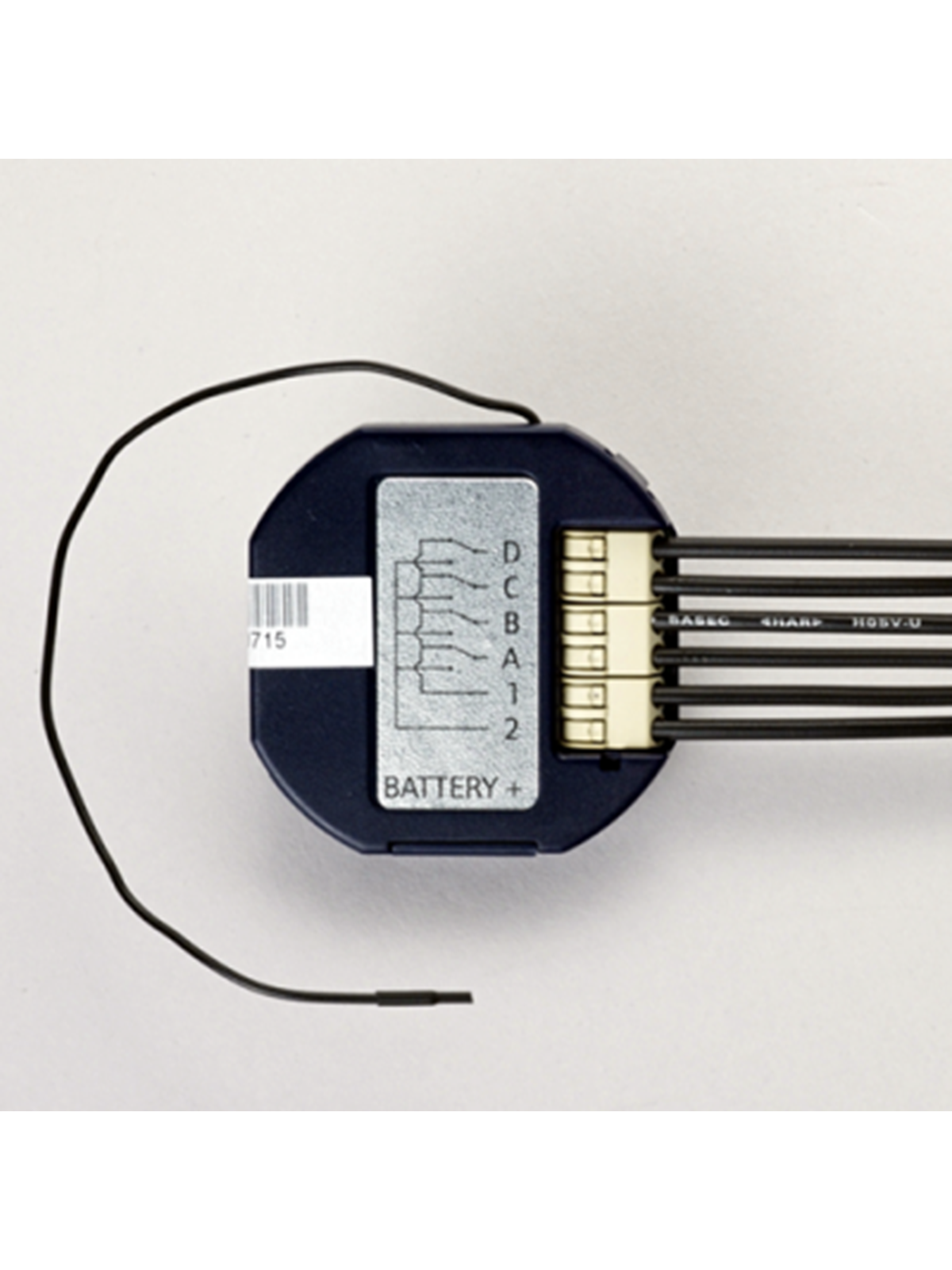

RCI-4L
- The RCI-4L accepts volt-free latching switch inputs and transmits wireless Rako coded Rakom messages to other Rako wireless receiver and Bridge units.
- The module is battery powered and is designed to fit in a standard UK backbox.
- Programmable via Rako's patented NFC (Near Field Communication) technology each of the 4 inputs can trigger a single command or start a macro function on each state change of the switch, making the unit the ideal device for integrating third party wall-switches into a Rako environment.
Technical Specification
Dimensions: 48x48x9mm
Input supply: 3V DC - 1 x 3V Lithium coin cell CR2032 battery
Housing: UL V0 material
Connections: 6 way direct push-in Maximum lead length 300mm
Terminal sizes: 0.75mm2 max
Climate range
Temperature: +2C to +40C
Humidity: +5% to 95% non condensing
Standards
Emissions: EN61000-6-3 : 2007
Immunity: EN61000-6-1 : 2007
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
Warranty: 2Year Return to Rako for Repair. Products older than 2 years can be repaired by Rako for a fixed fee of £50.
Simplify my Home are Authorised Rako Dealers
- Free Design Service - Call us to discuss your requirements or email us your lighting schedule/plans.
- Developer/Trade Pricing - Available upon request
- Support our clients - We offer on-site support and commissioning.
- Confidence in Quality - Our Rako Specialist has designed, installed and commissioned some of the largest Residential & Commercial Projects in the UK.
£107.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
