Description
A 6 1/2"
c-cam® bass driver and a more highly specified version of the
c-cam gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
Technology
- 2-way design with pivoting c-cam tweeters (15 degrees of play).
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Boundary compensation control.
- Audio match with CP range 200 models and Silver Series hi-fi speakers.
- Innovative Tri-Grip® system providing three times the surface area and a better surface seal maximising bass response and mid-range clarity.

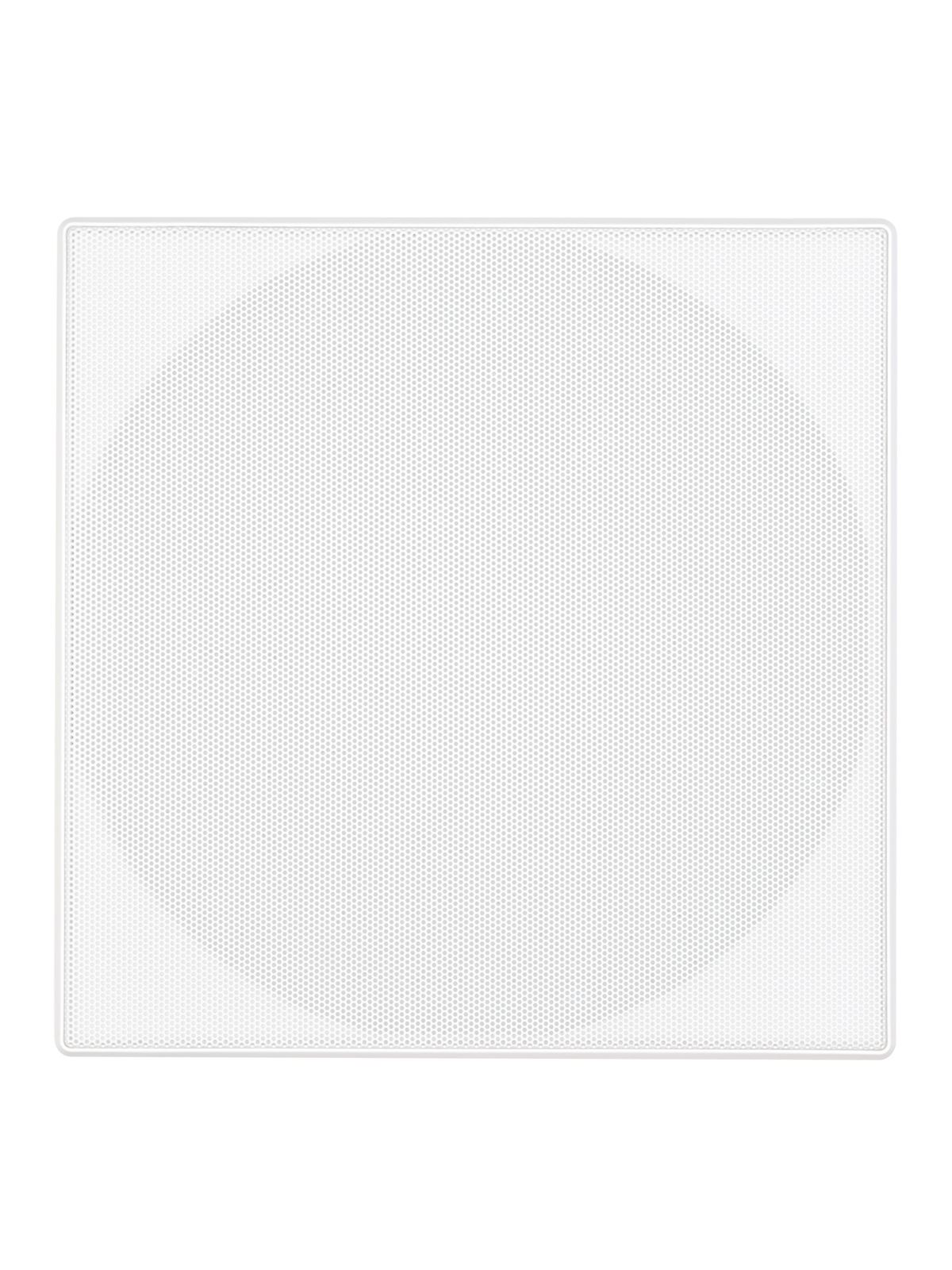

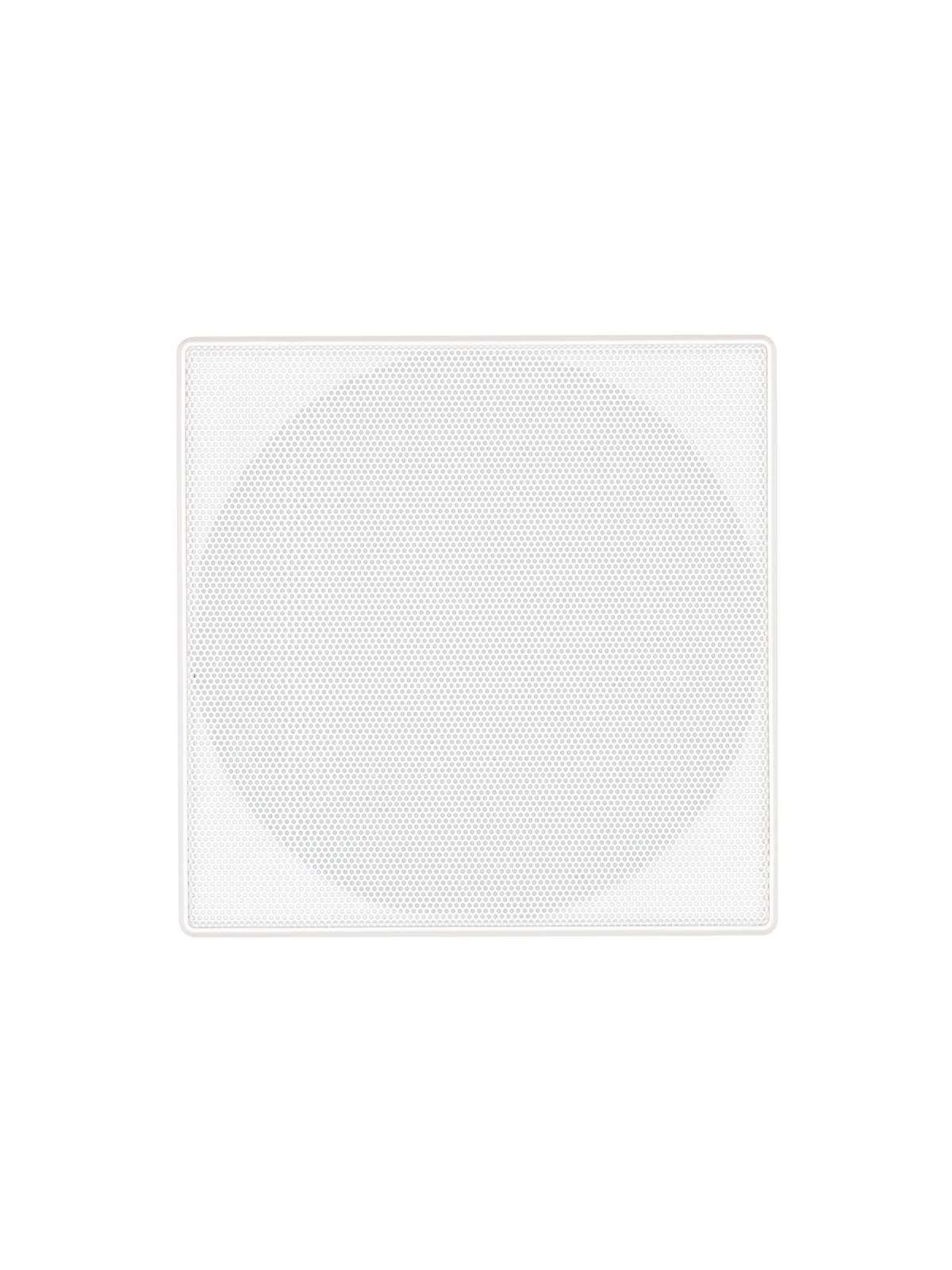

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
Specification
Frequency Response: 60 Hz - 30 kHz
Power Handling (RMS): 75 W
Overall Depth:(including grille): 118 mm (4 5/8 inch)
Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)
Impedance (Nominal): 6 0hms
Recommended Amp Requirements: 20 - 75 W
Cut Out Diameter: 211 mm (8 1/4 inch)
Pre-Construction Bracket: CB6 (Purple)
Sensitivity (1W@1M): 88.5 dB
Drivers Unit Complement: 6 1/2"
c-cam® cone bass driver 1”
c-cam® pivoting gold dome tweeter
Mounting Depth: 114 mm (4 1/2 inch)
Weight: 2.04kg (4lb 8oz)
Maximum SPL: 108 dBA
Overall Diameter:(including grille): 250 mm (9 13/16 inch)
Fixing Type: 3 position Tri-Grip® dog leg fixings
