Description

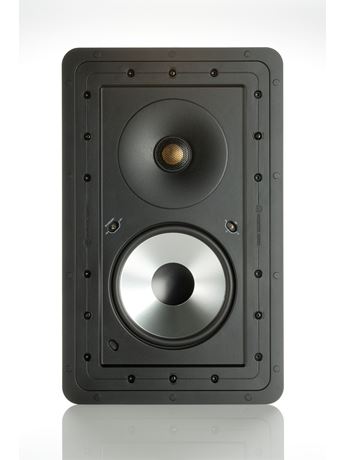

The CP-WT260's pivoting
c-cam tweeter is joined by a 6”
c-cam bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.
Technology
- Pivoting c-cam gold dome tweeter and c-cam bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Boundary compensation controls.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specification
Frequency Response: 65 Hz - 25 kHz
Power Handling (RMS): 65 W
Controls: HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch
Overall Dimensions:(including grille) (H x W): 415 x 262.5 mm (16 5/16 x 10 5/16 inches)
Pre-Construction Bracket: WB8 (Green)
Cable Connection: Gold plated 'push' type terminals
Impedance (nominal): 6 Ohms
Recommended Amp Requirements: 20 - 65 W
Overall Depth:(including grille): 102 mm (4 inches)
Sensitivity (1W@1M): 88 dB
Drivers Unit Complement: 2-way 6˝
c-cam® cone bass driver 1˝
c-cam pivoting gold dome tweeter
Cut Out Dimensions:(H x W): 381 x 228 mm (15 x 9 inches)
Construction Material: Mineral filled ABS Plastic,(RoHS compliant)
Maximum SPL: 106.9 dBA
Fixing Type: 6 position Tri-Grip® dog leg fixings
Crossover Frequency: / Slope 2.6 kHz @ 12 dB / Octave
Weight: 3.31kg (7lb 4oz)
