Description

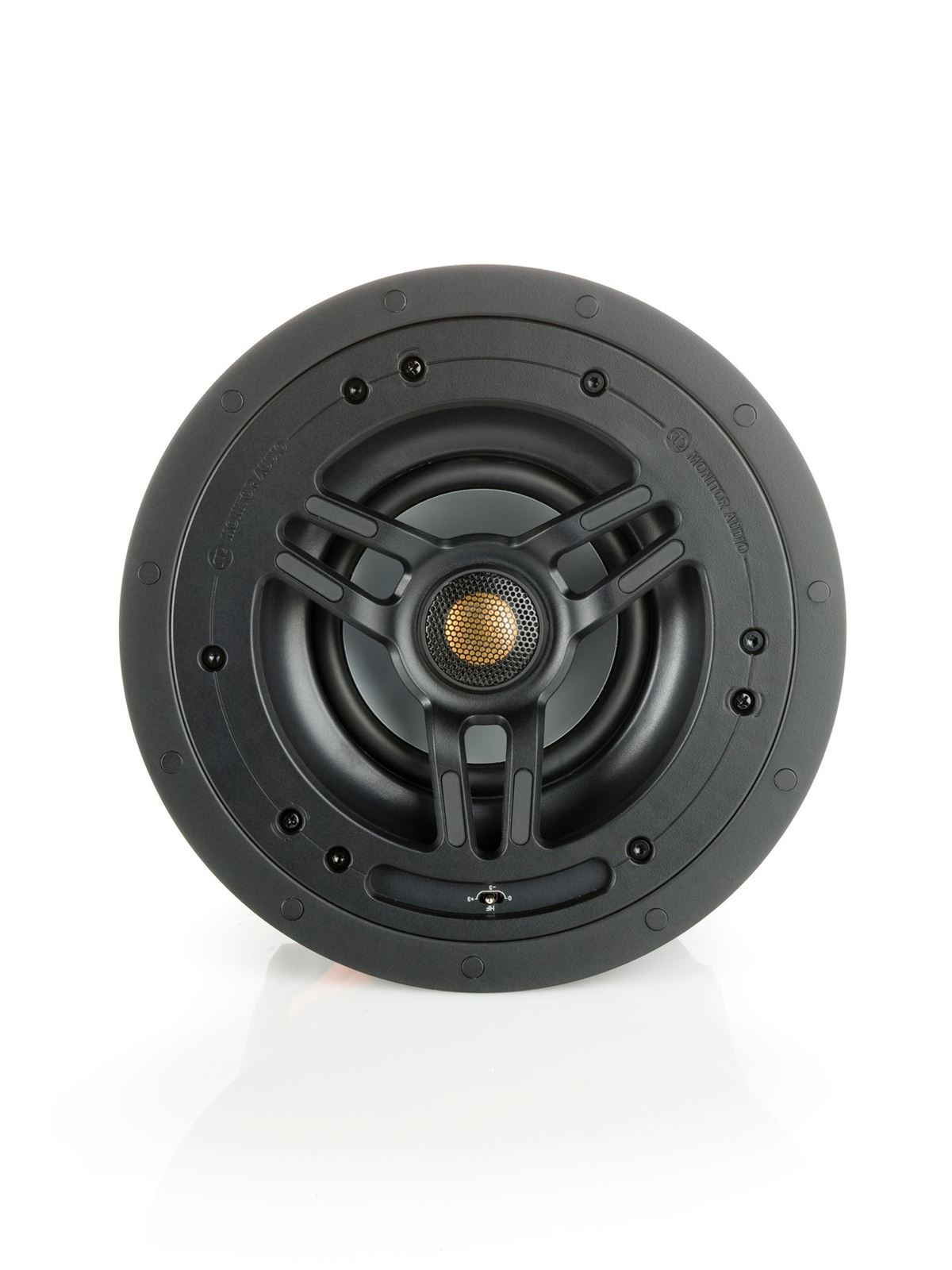

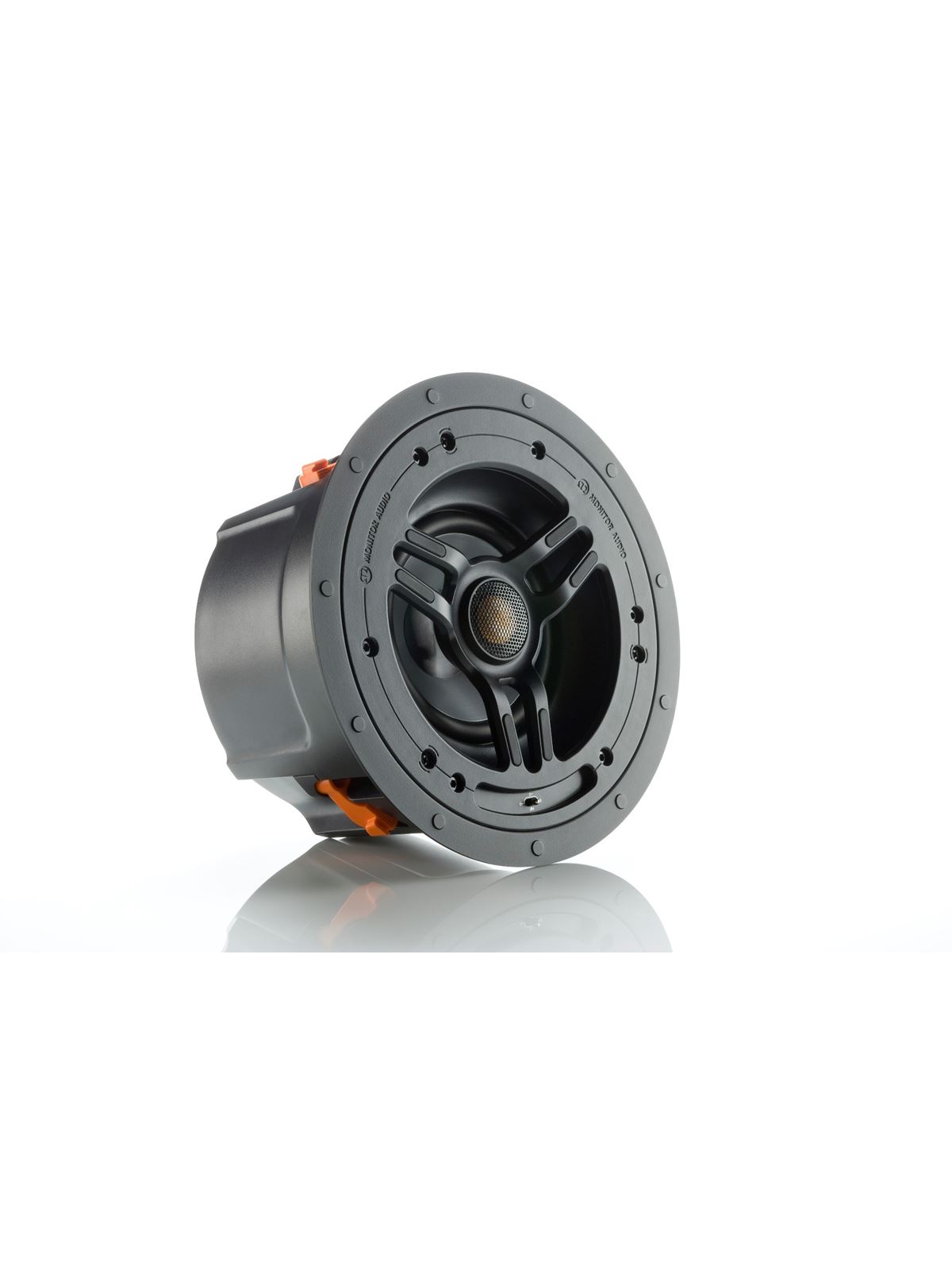

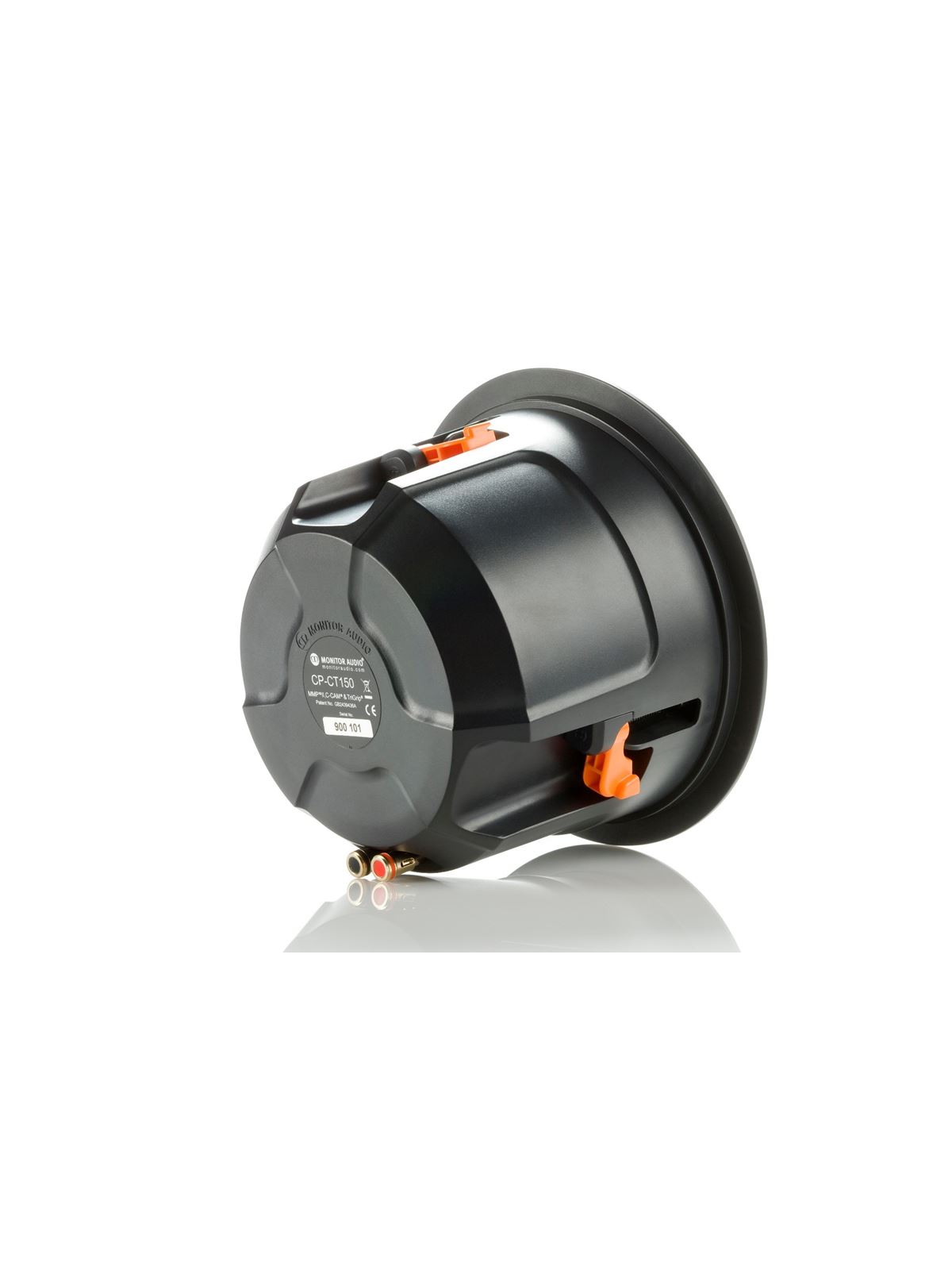

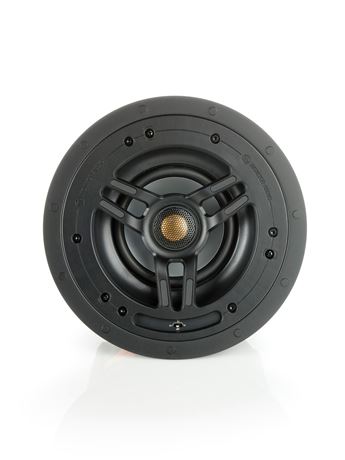

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-CT150 in-ceiling model features a 5”
mmp®II bass driver, high frequency level adjustment (+3dB / 0dB / -3dB) and a pivoting
c-cam® tweeter.
Technology
- Pivoting c-cam gold dome tweeter and MMPII bass driver.
- High overall efficiency.
- High frequency level adjustment (+/-3dB).
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specification
Frequency Response: 75 Hz - 25 kHz
Power Handling (RMS): 50 W
Controls: HF Level Switch (+3dB / 0dB / -3dB)
Overall Diameter:(including grille): 250 mm (9 13/16 inches)
Pre-Construction Bracket: CB6 (Purple)
Cable Connection: Gold plated 'push' type terminals
Impedance (nominal): 6 Ohms
Recommended Amp Requirements: 20 - 50 W
Mounting Depth: 151mm (5 15/16 inches)
Grille Attachment: Magnetic
Sensitivity (1W@1M): 85 dB
Drivers Unit Complement: 2-way 5”
mmp®II cone bass driver. 1”
c-cam® pivoting gold dome tweeter
Cut-out Diameter: 212mm (8 3/8 inches)
Construction Material: Mineral filled ABS Plastic,(RoHS compliant)
Maximum SPL (single unit in free space): 102.8 dBA
Fixing Type: 3 position Tri-Grip® dog leg fixings
Weight: 2.14kg (4lb 12oz)
