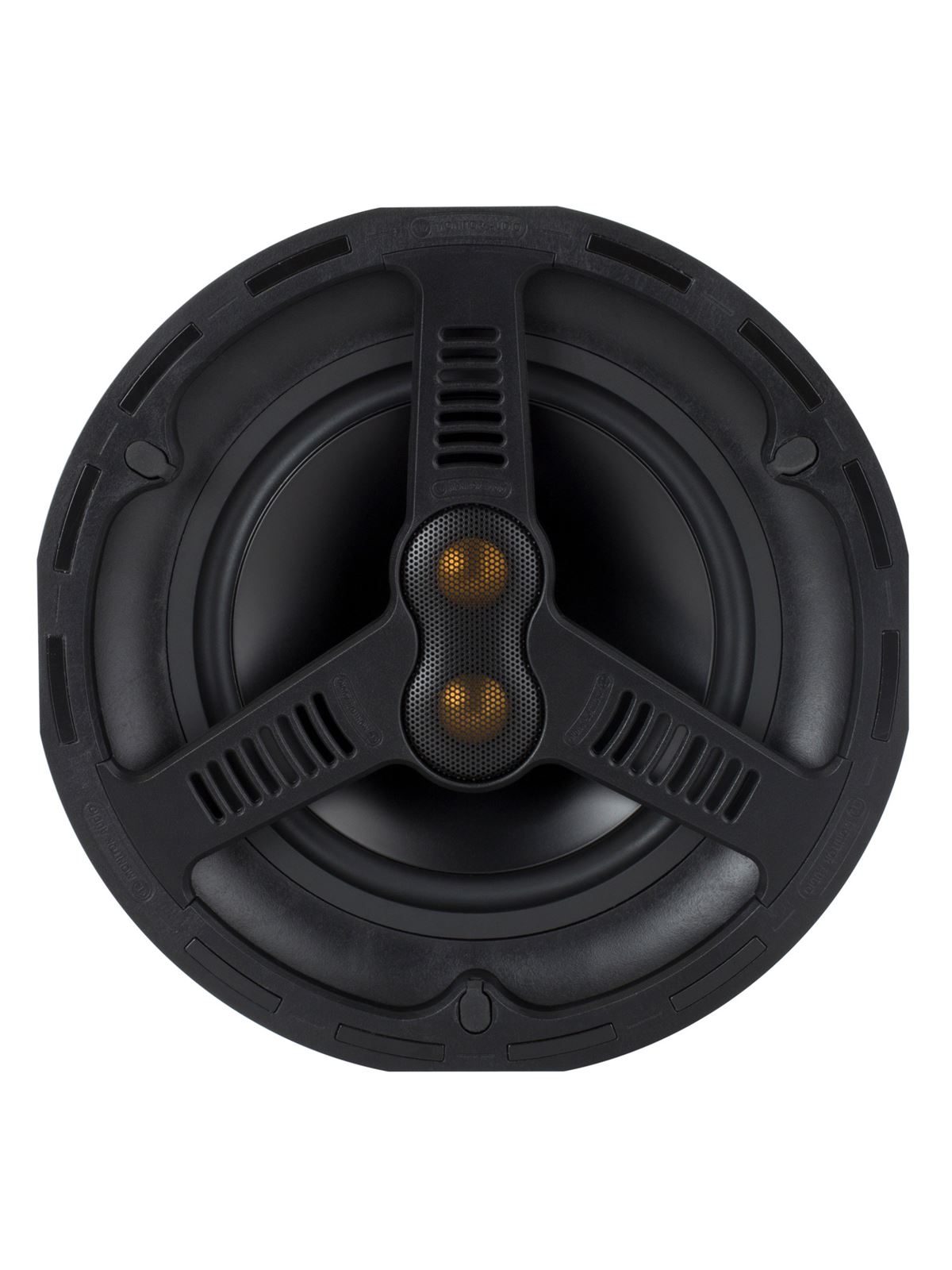

Description
Anodised black for stealthy in-wall/ceiling integration, the
c-cam bass drivers combine co-axially with Monitor Audio’s renowned 1”
c-cam tweeters, which are twinned and angled on the AWC280-T2 to deliver high performance stereo sound from a single unit where space is limited.
Technology
- Quick and easy installation
- High Performance c-cam bass and high frequency drivers

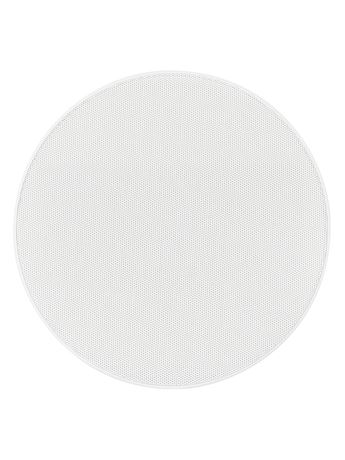

- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
Specification
Frequency Response: 50 Hz - 30 KHz
Power Handling (RMS): 100 W
Overall Depth:(including grille): 102.5 mm (4 1/32 inch)
Construction Material: Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Impedance (Nominal): 8+8 Ohms
Recommended Amp Requirements: 20 - 100 W
Sensitivity (1W@1M): 89 dB
Drivers Unit: 8”
c-cam® cone bass driver 2 x 1”
c-cam® gold dome tweeter (fixed angle)
Connection: 2 x (2 pairs) Gold plated push style terminal
Mounting Depth: 97.55 mm (3 7/8 inch)
Weight: 2.8kg (6lb 2oz)
Maximum SPL (single unit in free space): 109 dBA
Cut-Out Diameter: 247 mm (9 3/4 inch)
