Description

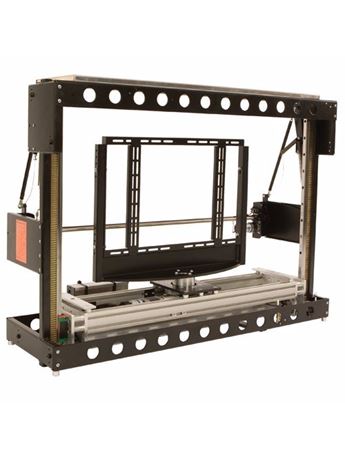

The Heavy Duty TV Lift and Swivel mechanism is a heavy duty lift mechanism with full bi-directional swivel that employs the same iconic drop and roll flap mechanism as the Plasma Lift Range . Built with a rack and pinion system, the elaborate guide system ensures a smooth and robust lifting action. The heavy duty swivel mechanism makes the product ideal for indoor marine applications and for large screens over 65” or where you wish to have a deep speaker or VC Camera mounted with the screen.
- Unique drop and roll flap mechanism
- Full Cable Management
- Custom sized to suit exact size of screen
- Accurate and smooth guide system
- Positively driven rack system for secure and robust lifting
- Custom frames for deeper screens and speakers
|
PRODUCT CODE
|
MLS
|
|
CONTROL
OPTIONS
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
|
DECIBEL RATING
|
65DB
|
|
MAX ROTATION
|
180° EACH WAY
|
|
MAX SCREEN DEPTH
|
140MM (5.51")
|
|
MAX WEIGHT
|
50KG (110LBS)
|
|
MOVEMENT TYPE
|
MOTORISED
|
£4,950.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
