Description

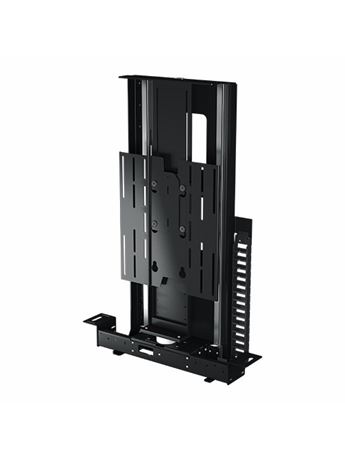

The LSM motorised TV lift mechanism is ideal for concealing screens from approximately 42" to 65" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.
The LSM range is available with any of the following lid types to cater for any application:
Lid Types
PUSH FLAP (LSL-PF)
As the lift raises there is a roller that manually pushes the flap open, closing when the lift lowers with gravity.
ELECTRIC FLAP (LSL-EFA
Before the lift raises, a motorised arm pushes the lid open, closing after the lift lowers
BOX ENCLOSURE (LSL-BE)
Suitable for a box enclosure surrounds the screen or a floating lid that raises with the lift. (Not included)
- Quiet and Smooth Action at Approximately 40mm(1.6") per second
- Full Cable Management
- Wide Range of Mounting Options
- 24V DC motor - suitable for direct DC supply
- Marine Suitable Robust Beam
|
PRODUCT CODE
|
LSM4
|
LSM5
|
LSM6
|
LSM7
|
LSM8
|
|
CONTROL BOX
DIMENSIONS
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
|
|
CONTROL OPTIONS
|
CONTACT CLOSURE / IR (RF VERSION
AVAILABLE
|
CONTACT CLOSURE / IR (RF VERSION
AVAILABLE
|
CONTACT CLOSURE / IR (RF VERSION
AVAILABLE
|
CONTACT CLOSURE / IR (RF VERSION
AVAILABLE
|
CONTACT CLOSURE / IR (RF VERSION
AVAILABLE
|
|
DECIBEL RATING
|
52DB
|
52DB
|
52DB
|
52DB
|
52DB
|
|
FINISH (CUSTOM
AVAILABLE)
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
|
INTERNAL CABINET
HEIGHT
|
820MM (32.28")
|
880MM (34.64")
|
950MM (37.40")
|
1060MM (41.73")
|
1270MM (41.7")
|
|
LID TYPE
|
BOX ENCLOSURE / FIXED LID & PUSH
FLAP OPTIONS SUPPLIED
|
BOX ENCLOSURE / FIXED LID & PUSH
FLAP OPTIONS SUPPLIED
|
BOX ENCLOSURE / FIXED LID & PUSH
FLAP OPTIONS SUPPLIED
|
BOX ENCLOSURE / FIXED LID & PUSH
FLAP OPTIONS SUPPLIED
|
BOX ENCLOSURE / FIXED LID SUPPLIED
|
|
MAX LIFTING
CAPACITY
|
50KG (110LBS)
|
50KG (110LBS)
|
50KG (110LBS)
|
50KG (110LBS)
|
80KG (176LBS)
|
|
MAX LIFTING
CAPACITY (MARINE)
|
30KG (66LBS)
|
30KG (66LBS)
|
30KG (66LBS)
|
30KG (66LBS)
|
40KG (88LBS)
|
|
MAX SCREEN HEIGHT
|
675MM (26.67")
|
735MM (28.93")
|
805MM (31.69")
|
915MM (36.02")
|
1025MM (40.3")
|
|
MOVEMENT TYPE
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
MOTORISED
|
|
OUTPUT POWER
SUPPLY
|
YES(12V)
|
YES(12V)
|
YES(12V)
|
YES(12V)
|
YES(12V)
|
|
POWER CONSUMPTION
|
250W - 500W
|
250W - 500W
|
250W - 500W
|
250W - 500W
|
250W - 500W
|
|
POWER SUPPLY
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
240V OR 110V
|
|
SCREEN SIZES
(APPROX)
|
42-50"
|
50-55"
|
55-60"
|
60-65"
|
65-79"
|
|
SHIPPING
DIMENSIONS
|
101 x 85 x 33cm
(39.8 x 33.5 x 13")
|
108 x 85 x 33cm
(42.5 x 33.5 x 13")
|
115 x 85 x 33cm
(45.3 x 33.5 x 13")
|
125 x 85 x 33cm
(49.2 x 33.5 x 13")
|
TBC
|
|
SHIPPING WEIGHT
|
34kg (75lbs)
|
35kg (77lbs)
|
36kg (79lbs)
|
37kg (82lbs)
|
TBC
|
£2,200.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
