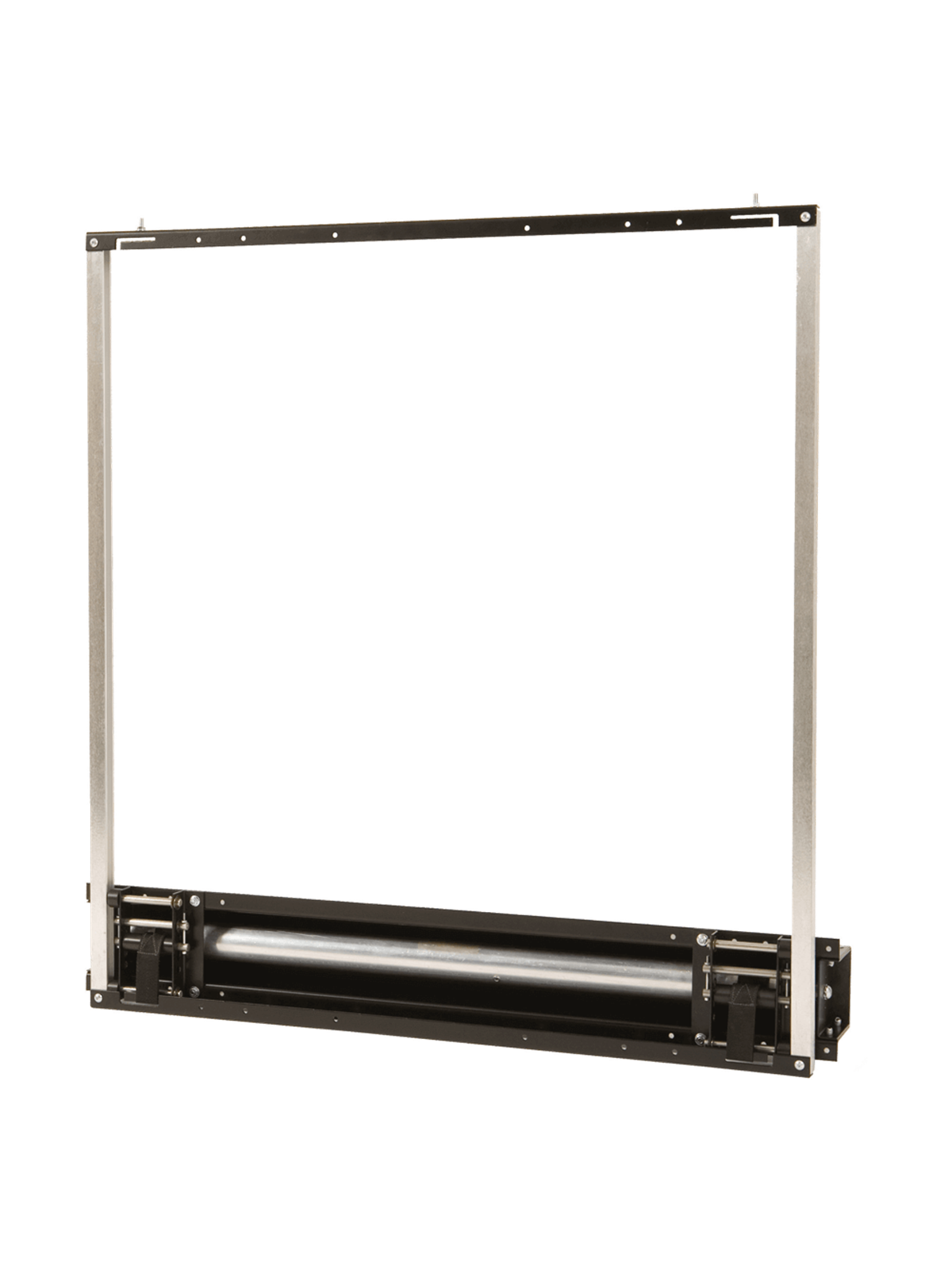

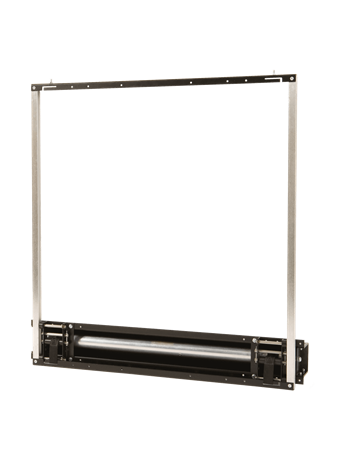

Future Automation Picture Lift Mechanism PIC


Description

The Picture Lift mechanism allows a flat screen television to be concealed in a recess behind a piece of art work.

A range of travel options are available to allow any screen from 32” to 60” to be concealed.

The single panel or picture can either raise or lower to reveal the screen – a brilliantly simple Picture Lift mechanism to conceal a TV screen in a wall.

  • Range of travel distances
  • Smooth quiet motion
  • Option to combine with a motorised bracket
  • Complete sheet metal cassette ensures simple installation



PRODUCT CODE

PIC1

PIC2

PIC3

PIC-BESPOKE

CONTROL OPTIONS

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)

DECIBEL RATING

46DB

46DB

46DB

VARIABLE

DEPTH WITHIN WALL

70MM (2.75")

70MM (2.75")

70MM (2.75")

VARIABLE

FINISH (CUSTOM AVAILABLE)

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

BLACK PAINT - RAL 9005

MAX TRAVEL OF PANEL

560MM (22.04")

710MM (27.95")

860MM (33.85")

REQUIRED DISTANCE

MAX WEIGHT OF PANEL

10KG (22LBS)

10KG (22LBS)

10KG (22LBS)

10KG (22LBS)

MOVEMENT TYPE

MOTORISED

MOTORISED

MOTORISED

MOTORISED

POWER CONSUMPTION

110W

110W

110W

VARIABLE

POWER CONSUMPTION (STANDBY)

3W

3W

3W

VARIABLE

POWER SUPPLY

240V OR 110V

240V OR 110V

240V OR 110V

240V OR 110V

SHIPPING DIMENSIONS

93 x 30 x 21cm (36.61 x 11.81 x 8.26")

93 x 30 x 21cm (36.61 x 11.81 x 8.26")

98 x 30 x 21cm (38.358 x 11.81 x 8.26")

VARIABLE

SHIPPING WEIGHT

10kg (22lbs)

11kg (24lbs)

10kg (24lbs)

VARIABLE


£1,320.00 inc. VAT (1% Cashback available on all purchases via Debit Card)
£1,100.00 excl. VAT

Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
