Description

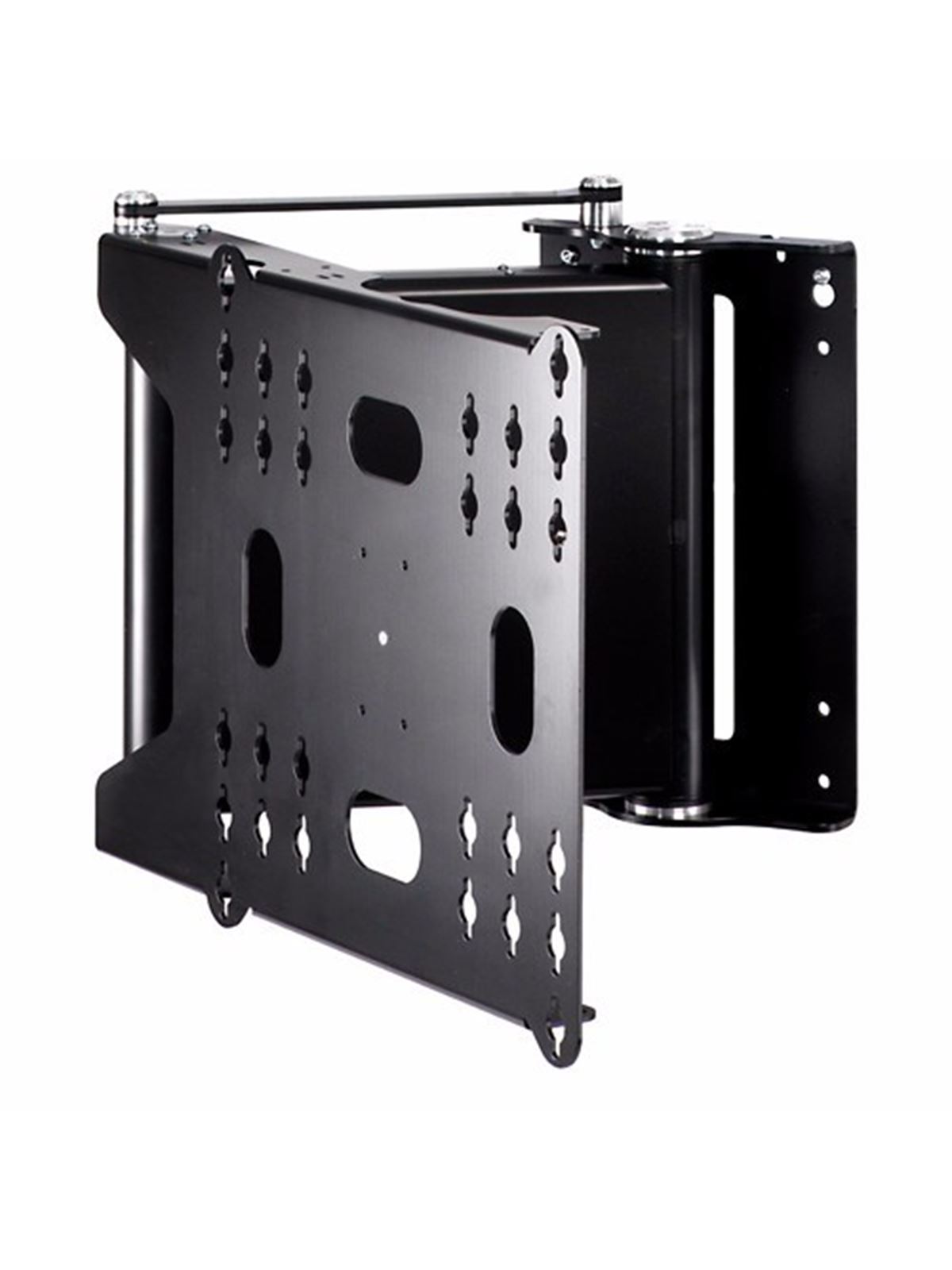

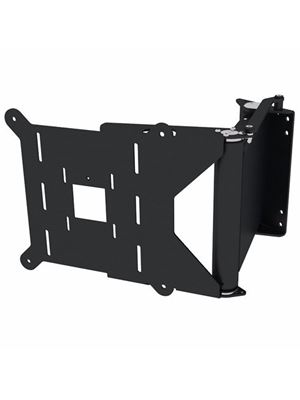

A dedicated Electric TV Mount, the PSE90 offers full rotation up to 90 degrees in one direction for larger flat screen TVs. The superbly smooth action, cable management, and neat mounting plate encapsulate the quality of Future Automation design with functionality and look unlike any other TV Mount on the market. A variety of mount options ensure that individual screens are mounted in the neatest possible way. For smaller screens see the
FSE90.
A stud rail mount option is available for this bracket - see
SRK for details
- Quiet Smooth Action with Variable Speed Motion
- Full Cable Management
- Onboard Electronics
- Wide Range of Mounting Options
|
PRODUCT CODE
|
PSE90-CW
|
PSE90-CCW
|
|
CONTROL OPTIONS
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
RS232 / CONTACT CLOSURE / IR (RF
AVAILABLE)
|
|
DECIBEL RATING
|
52DB
|
52DB
|
|
DEPTH FROM WALL
|
80MM (3.14")
|
80MM (3.14")
|
|
FINISH (CUSTOM
AVAILABLE)
|
BLACK PAINT - RAL 9005
|
BLACK PAINT - RAL 9005
|
|
MAX ROTATION
|
90° ONE WAY (CLOCKWISE FROM WALL)
|
90° ONE WAY (CLOCKWISE FROM WALL)
|
|
MAX WEIGHT
|
60KG (132LBS)
|
60KG (132LBS)
|
|
MOVEMENT TYPE
|
MOTORISED
|
MOTORISED
|
|
POWER CONSUMPTION
|
MAX 120W
|
MAX 120W
|
|
POWER SUPPLY
|
240V OR 110V
|
240V OR 110V
|
|
SHIPPING
DIMENSIONS
|
78 x 60 x 21cm (30.71 x 23.62 x
8.27")
|
78 x 60 x 21cm (30.71 x 23.62 x
8.27")
|
|
SHIPPING WEIGHT
|
24kg (62lbs)
|
24kg (62lbs)
|
£1,375.00 excl. VAT
Available for online purchase for Home delivery via Courier or Direct from Manufacturer/Distributor.
