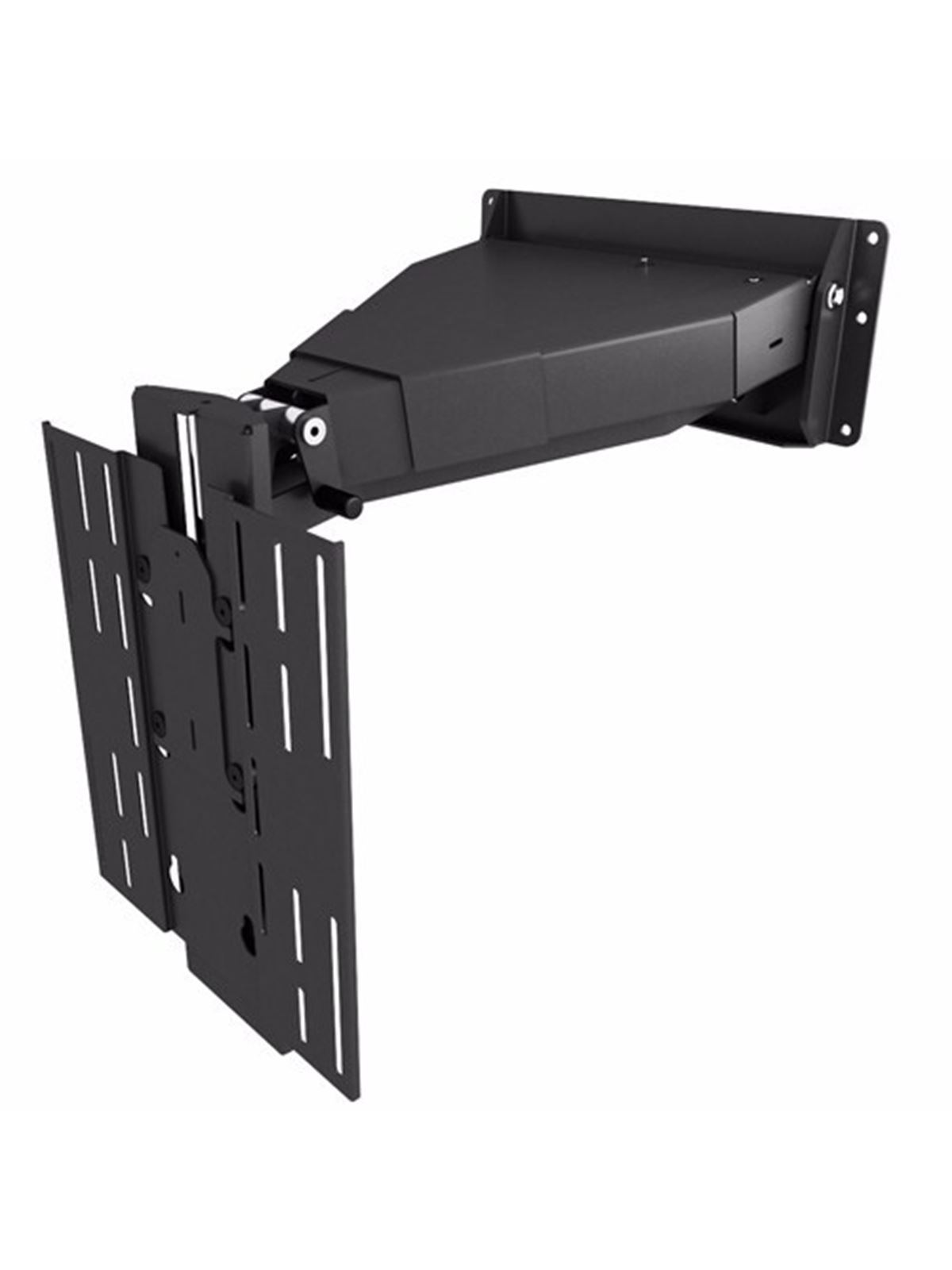

The Electric Advance and Drop V2 TV Wall Mount bracket is designed to move a flat screen vertically to a more desirable viewing height. It also features a manual swivel of up to 45° to allow for multiple viewing positions - with a self aligning mechanism when the wall mount retracts into the upward position. The down and out movement make this ideal for mounting a TV over a fireplace as the EAD moves forward to clear a mantle piece and then drops down for a more favourable viewing position. A truly unique and creative solution.
- Unique Forward and Drop (Out and Down) Motion
- Manual swivel with self aligning feature when retracting
- Smooth quiet motion
- Perfect For Mounting TV Above Fireplaces
Specification
Product Code: EAD2
Control Options: RS232 / Contact Closure / IR (RF Available)
Decibel Rating: 55dB
Depth From Wall: 135mm (5.31")
Finish (Custom Available): Satin Black Paint - RAL 9005
Max Drop: 550mm (21.65")
Max Rotation (Manual): 45° Each Way
Max Weight: 40kg (88lbs)
Movement Type: Motorised (Manual Swivel)
Power Consumption: 250 - 500W
Power Consumption (Standby): 100mA
Shipping Information
Shipping Dimensions: 79 x 59 x 27cm (31.10 x 23.22 x 10.62")
Shipping Weight:35kg (77lbs)
Variants
EAD3 - Electric Advance & Drop TV Wall Mount
This item is not available as “add to cart”, due to either manufacturer restrictions or the product requiring professional setup, therefore we offer an installation and setup service in London & Surrounding areas, depending on the products required and the value of your order we can offer Free Installation services.
