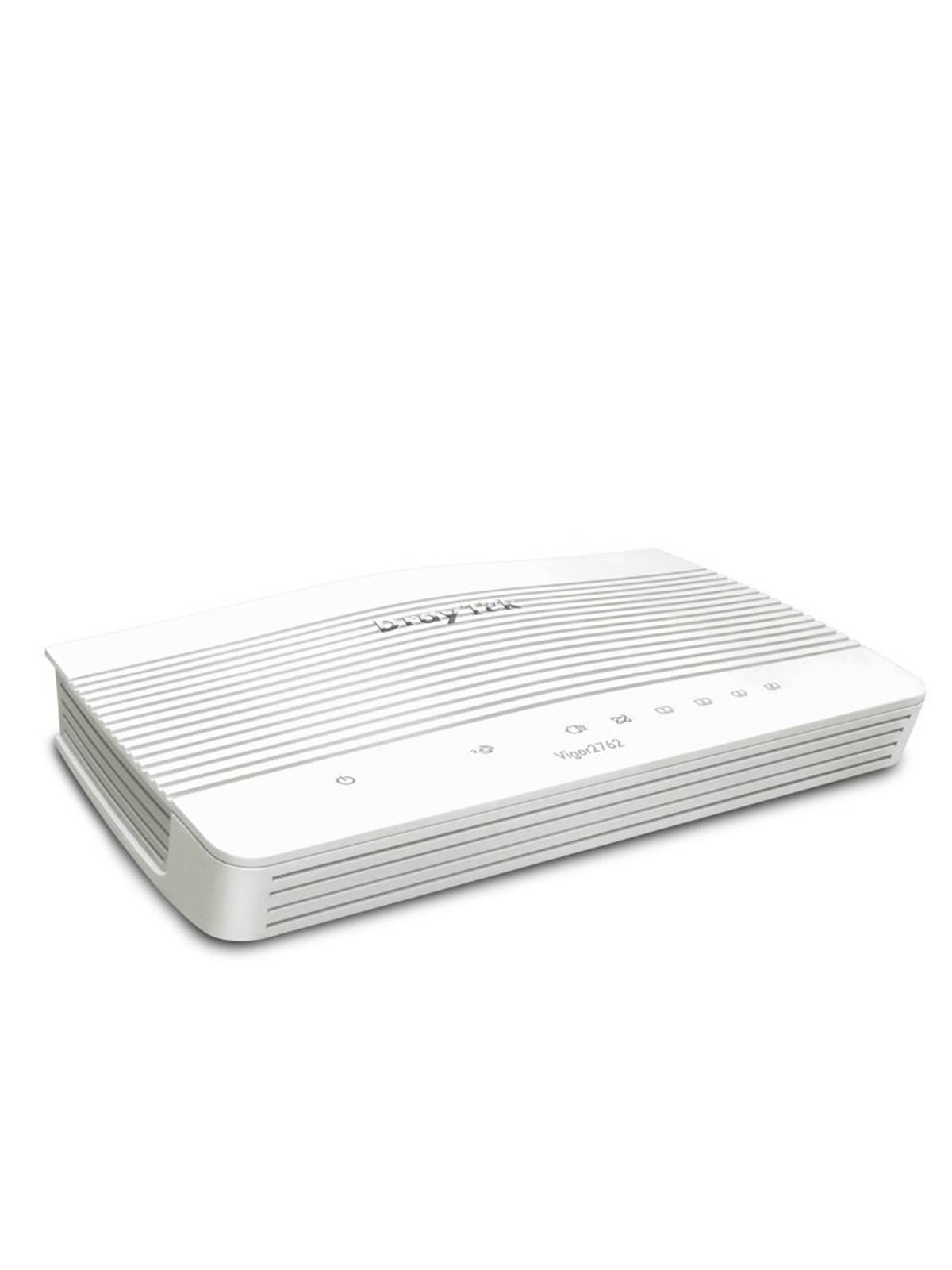

DrayTek Vigor 2762 ADSL/VDSL Router (Special Order / Discontinued)

 WHAT IS IT?

The Vigor 2762 is an ADSL/VDSL2, Ethernet or 3G/4G router, that's ideal for your small office or home business/office. It provides connectivity to your PCs or other Internet-connected devices (laptops, tablets, games consoles, smartphones) via its 4 built-in Gigabit Ethernet ports, or using Wireless LAN (on 'n' & 'ac' models).

The firewall helps protect your network from external threats, as well as the Vigor2762's built-in Content Filtering which gives you control over what and when your local users can access or download.

The Vigor 2762 series can alternatively connect to an Ethernet Internet connection, such as a cable/fiber modem (e.g. Virgin Media) instead of connecting to a ADSL/VDSL line.

Compatible 3G & 4G (LTE) modems can also optionally be added to the USB port to provide backup or main Internet connectivity without any fixed line.

The DrayTek Vigor 2762ac adds 802.11ac Dual-Band Wireless to your network, with up to 866Mbps on the 5GHz 11ac band, and up to 300Mbps on the 2.4GHz band, allowing devices access to the Internet from around the property.

The Vigor 2762ac operates simultaneously in both the 2.4Ghz and less congested 5Ghz band so your devices can connect to either, with Band Steering to ensure that each wireless device connecting is guided to its most suitable wireless band.

The Vigor 2762Vac variant integrates a VoIP ATA (Analogue Telephone Adapter), which provides two analogue phone ports to provide VoIP integration via the Internet (VoIP). You can connect 1 or 2 regular telephones, which can be used independently and simultaneously for both incoming and outgoing calls.

Technical Specification

• Device Type: Router - 4-port switch (integrated)

• Enclosure Type: Desktop

• Connectivity Technology: Wired

• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

• Capacity:VPN tunnels: 2 ¦ IPv4 rules: 20 ¦ IPv6 rules: 40 ¦ IP route policies: 50 ¦ Virtual interfaces (VLANs): 8

• Network / Transport Protocol: PPTP, L2TP, IPSec, PPPoE, PPPoA, DHCP, DNS, Bonjour, DDNS
• Routing Protocol: RIP-1, RIP-2, static IP routing, MPOA, policy-based routing (PBR)
• Remote Management Protocol: SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, TR-069
• Encryption Algorithm: DES, Triple DES, MD5, MPPE, AES, SSL, SHA-1, IKEv2
• Authentication Method: RADIUS, PAP, CHAP, X.509 certificates, MS-CHAP, MS-CHAP v.2
• Features: NAT support, ARP support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, ALG support, IPv6 support, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), RADIUS support, DHCP server, reset button, IPv4 support, 3G/4G USB Dongle Support, DHCP client, tagged VLAN, IGMP proxy, port-based VLAN
• Compliant Standards: IEEE 802.1Q, UPnP

• Framing Format: ANSI T1.413

• Type: DSL modem
• Digital Signaling Protocol: ADSL, VDSL, ADSL2, ADSL2+, VDSL2
• Protocols & Specifications: ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.997.1, ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.992.5 Annex M, ITU G.993.1, ITU G.993.2

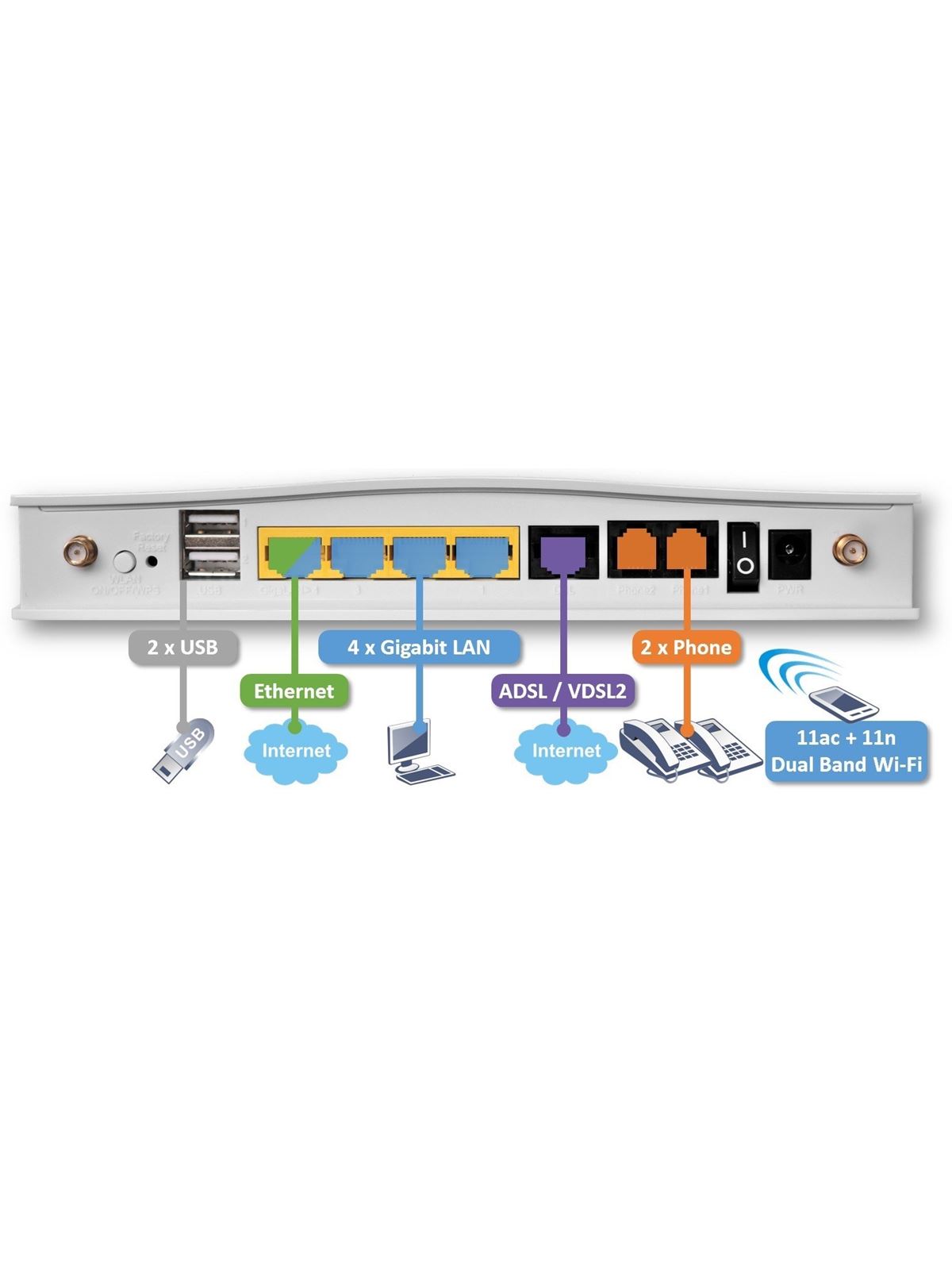

• Interfaces: LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-4

• Power Device:External power adapter
• Voltage Required: AC 230V
• Power Consumption : Operational:24 Watt

• Width: 20.7 cm
• Depth:13.1 cm

• Height: 4.2 cm
• Weight: 440 g
